LEXUS LS400 UCF10L-AEPGKK / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

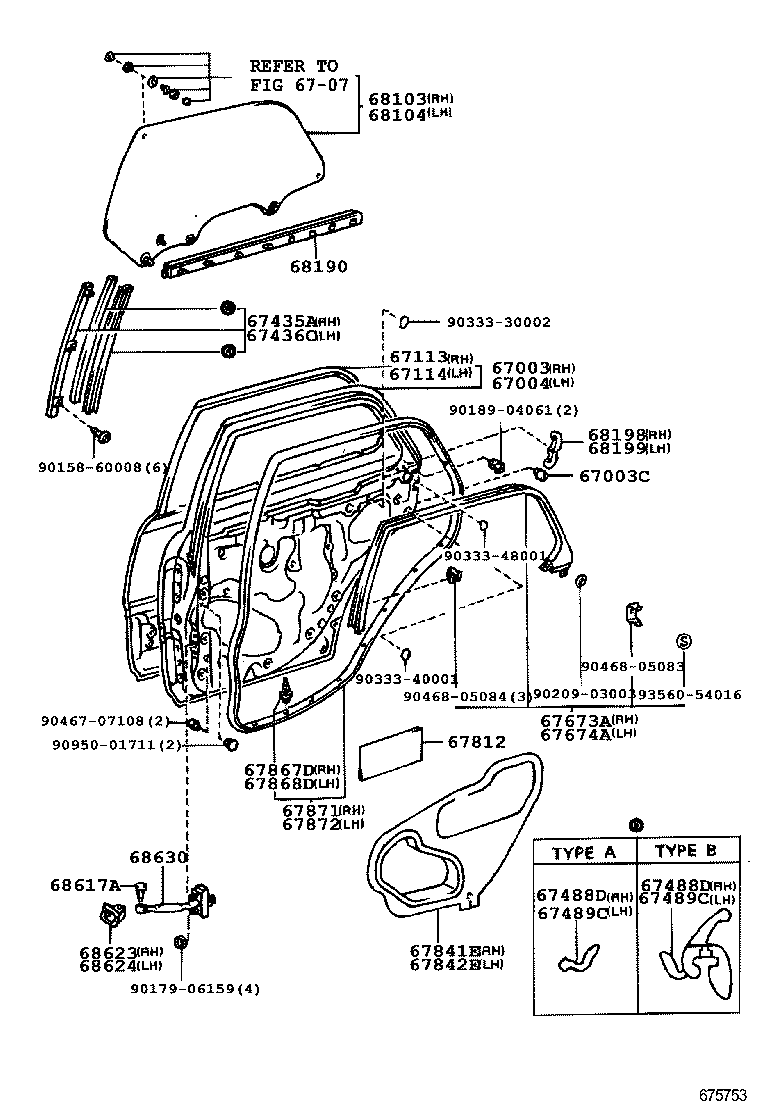

ILLUST NO. 1 OF 3(8905- )

LS400 | REAR DOOR PANEL GLASS 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67003C - CUSHION, REAR DOOR PANEL 67004 - PANEL SUB-ASSY, REAR DOOR, LH ** Refer Fig 67113 - PANEL, REAR DOOR, OUTER RH 67114 - PANEL, REAR DOOR, OUTER LH 67435A - GUIDE, REAR DOOR WINDOW, FRONT RH 67436C - GUIDE, REAR DOOR WINDOW, FRONT LH 67488D - WEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.4 67488D - WEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.4 67489C - WEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.5 67489C - WEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.5 67673A - GARNISH, REAR DOOR FRAME, RH 67674A - GARNISH, REAR DOOR FRAME, LH 67812 - PAD, REAR DOOR SILENCER 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER 68198 - SEAL, REAR DOOR BELT, REAR RH 68199 - SEAL, REAR DOOR BELT, REAR LH 68617A - PIN, REAR DOOR CHECK 68623 - COVER, DOOR CHECK, RH 68624 - COVER, DOOR CHECK, LH 68630 - CHECK ASSY, REAR DOOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
