LEXUS LS400 UCF20L-AEPGKK / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

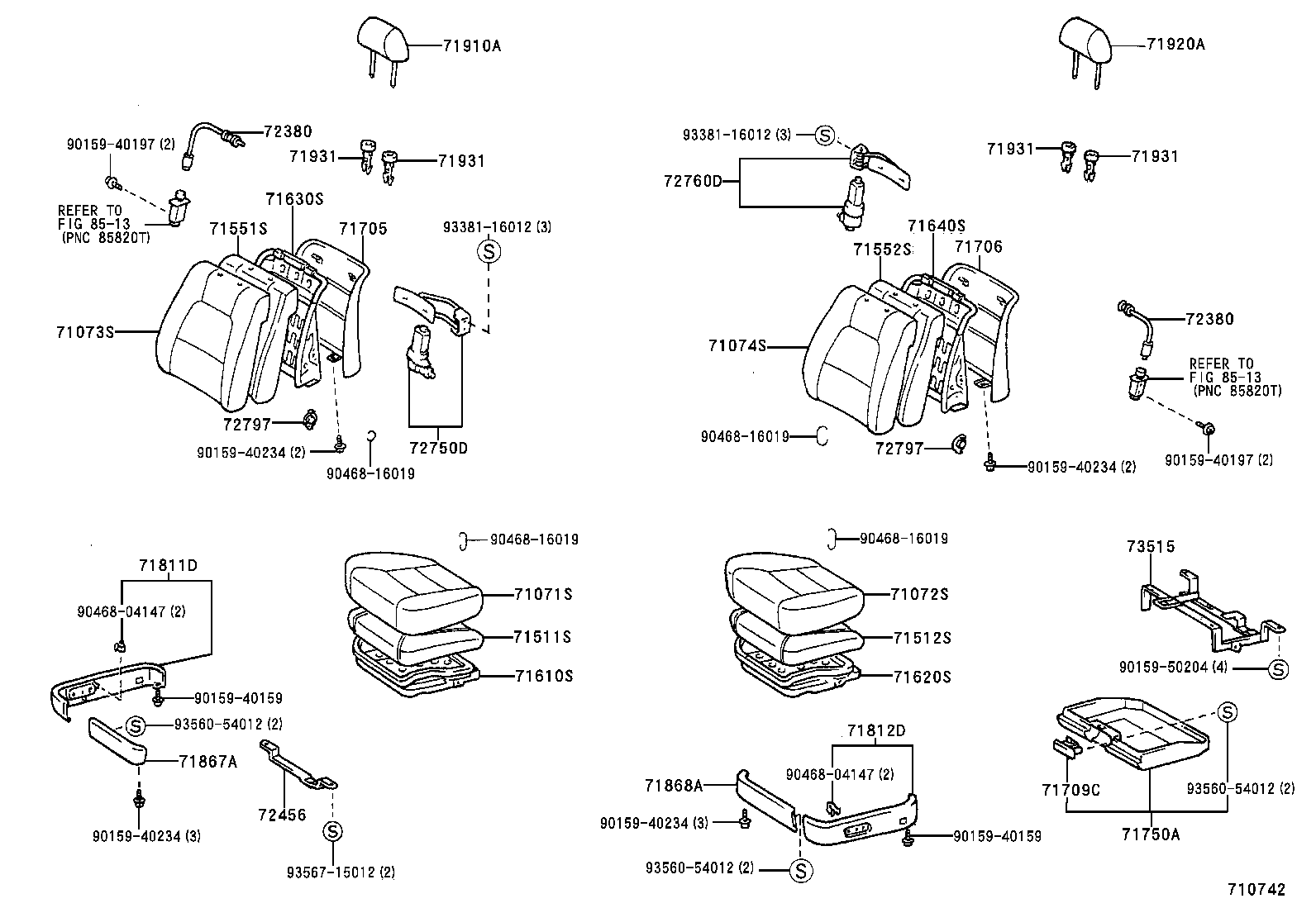

FRONT SEAT SEAT TRACK

MEMORY ADJUST SYSTEM ILLUST NO. 1 OF 2(9410-9608)

LS400 | FRONT SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY 71750A - TRAY ASSY, FRONT SEAT UNDER 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71910A - HEADREST ASSY, FRONT SEAT 71920A - HEADREST ASSY, FRONT SEAT, LH 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 72456 - BRACKET, SEAT FRAME SET, NO.2 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 72797 - SPACER, LUMBAR SUPPORT 72797 - SPACER, LUMBAR SUPPORT 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
