LEXUS SC300 400 JZZ31L-ACMVFA / POWERTRAIN-CHASSIS / FRONT AXLE ARM STEERING KNUCKLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

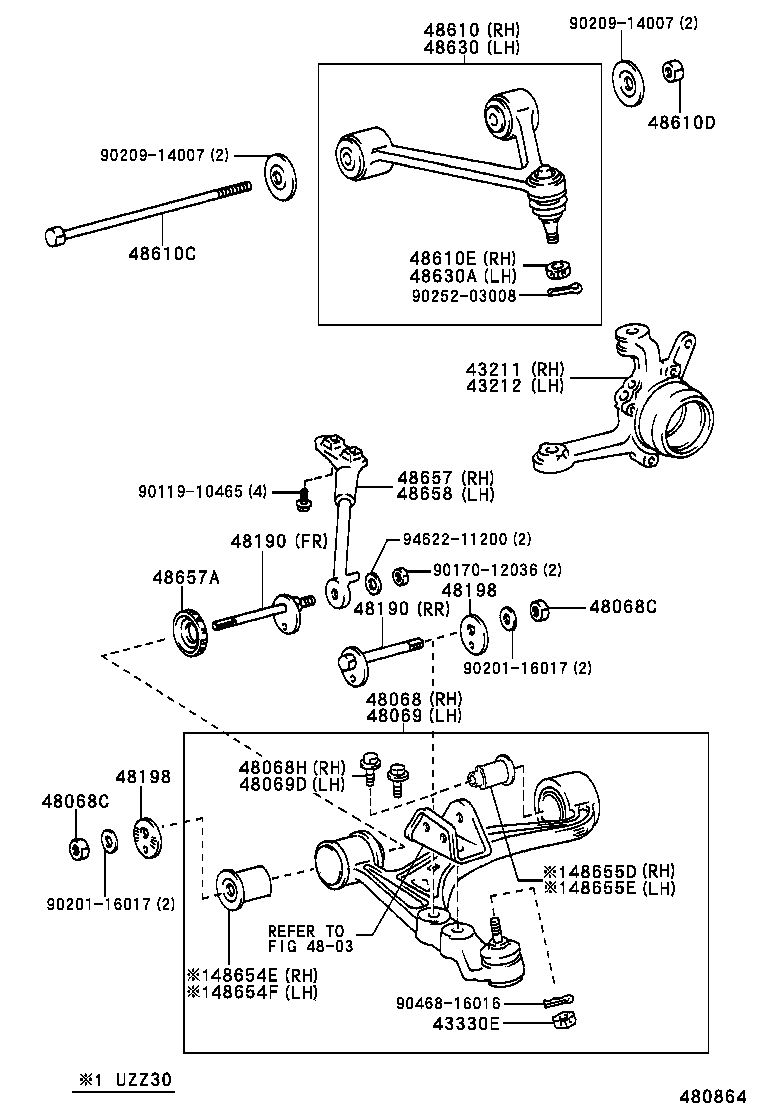

FRONT AXLE ARM STEERING KNUCKLE

(9104- )

SC300 400 | FRONT AXLE ARM STEERING KNUCKLE 43211 - KNUCKLE, STEERING, RH 43212 - KNUCKLE, STEERING, LH 43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING) ** Refer Fig 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) 48190 - CAM ASSY, CAMBER ADJUST 48190 - CAM ASSY, CAMBER ADJUST 48198 - CAM, CAMBER ADJUST, NO.2 48198 - CAM, CAMBER ADJUST, NO.2 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH 48610C - BOLT(FOR SUSPENSION UPPER ARM) 48610D - NUT(FOR SUSPENSION UPPER ARM) 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) 48654E - BUSH, FRONT LOWER ARM, NO.1 RH 48654F - BUSH, FRONT LOWER ARM, NO.1 LH 48655D - BUSH, FRONT LOWER ARM, NO.2 RH 48655E - BUSH, FRONT LOWER ARM, NO.2 LH 48657 - STAY, LOWER ARM BRACKET, RH 48657A - STOPPER, FRONT LOWER ARM BUSH 48658 - STAY, LOWER ARM BRACKET, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
