LEXUS GS300 JZS147L-BEAQFA / POWERTRAIN-CHASSIS / REAR DISC BRAKE CALIPER DUST COVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DISC BRAKE CALIPER DUST COVER

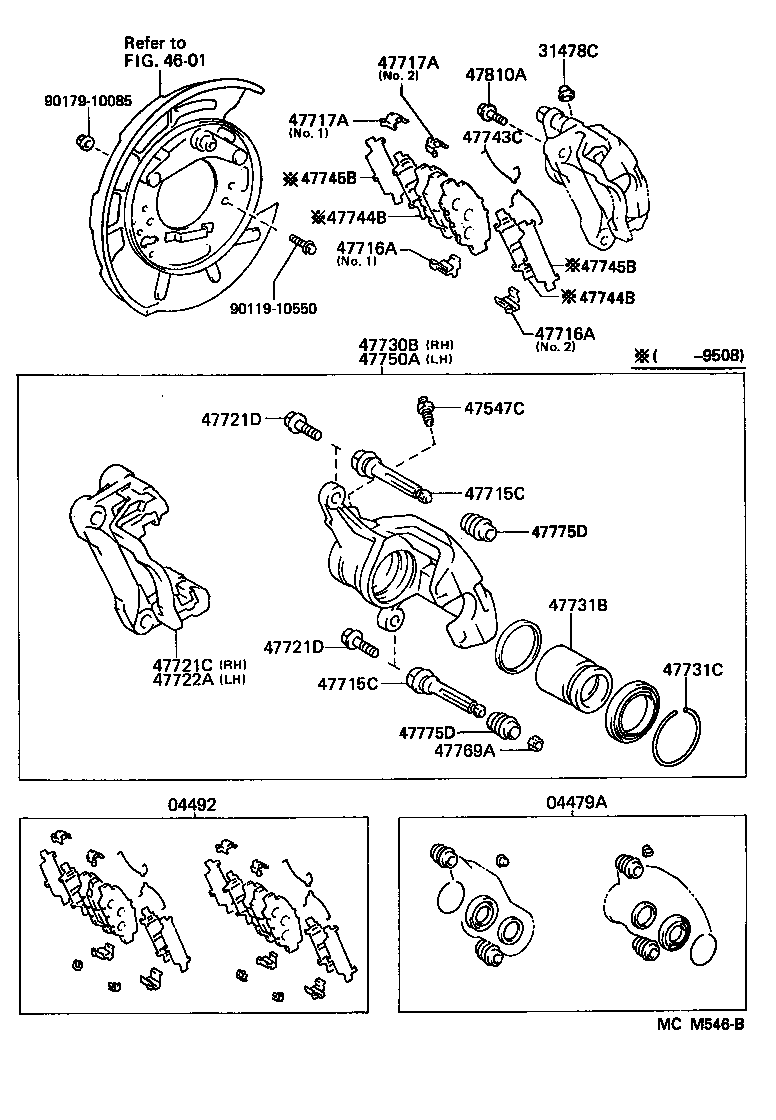

ILLUST NO. 1 OF 2(9301- )

GS300 | REAR DISC BRAKE CALIPER DUST COVER 04479A - CYLINDER KIT, DISC BRAKE, REAR 04492 - PAD KIT, DISC BRAKE, REAR 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) ** Refer Fig 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH 47731B - PISTON, REAR DISC BRAKE 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) 47743C - SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE) 47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) 47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) 47810A - BOLT, HEXAGON(FOR REAR CALIPER) ** Std Part ** Std Part
