LEXUS GS300 JZS147L-BEAQFA / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

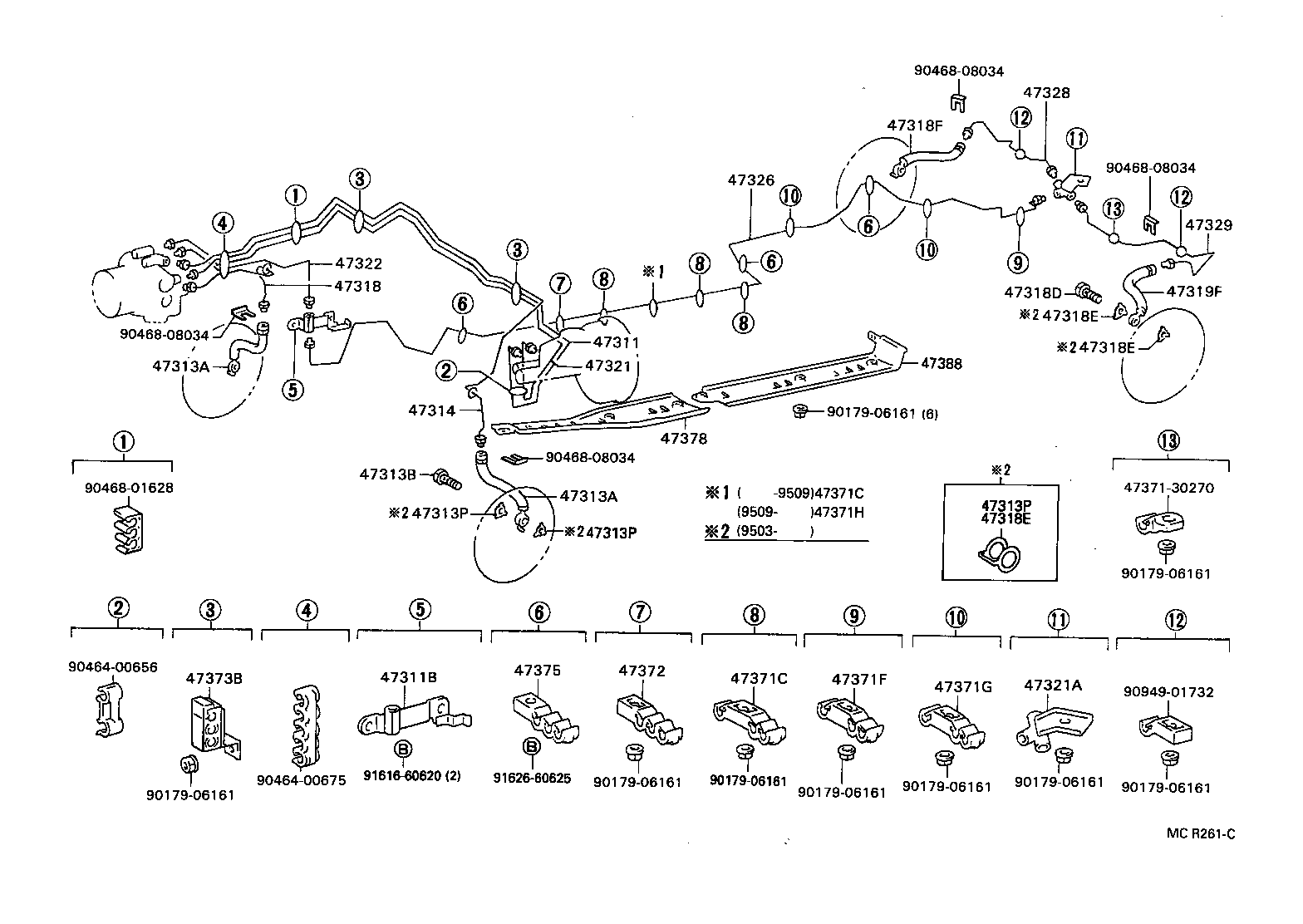

BRAKE TUBE CLAMP

W(ANTI-LOCK BRAKING SYSTEM) ILLUST NO. 1 OF 2(9301- )

GS300 | BRAKE TUBE CLAMP 47311 - TUBE, FRONT BRAKE, NO.1 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47318 - TUBE, FRONT BRAKE, NO.8 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47321A - WAY(FOR REAR BRAKE TUBE) 47322 - TUBE, REAR BRAKE, NO.2 47326 - TUBE, REAR BRAKE, NO.6 47328 - TUBE, REAR BRAKE, NO.8 47329 - TUBE, REAR BRAKE, NO.9 ** Std Part 47371C - CLAMP, BRAKE TUBE, NO.7 47371C - CLAMP, BRAKE TUBE, NO.7 47371F - CLAMP, BRAKE TUBE, NO.10 47371G - CLAMP, BRAKE TUBE, NO.11 47371H - CLAMP, BRAKE TUBE, NO.12 47372 - CLAMP, BRAKE TUBE, NO.2 47373B - CLAMP, BRAKE TUBE, NO.3 47375 - CLAMP, BRAKE TUBE, NO.5 47378 - PROTECTOR, BRAKE TUBE 47388 - PROTECTOR, BRAKE TUBE, LOWER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
