LEXUS LX450 FZJ80L-GNPGKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

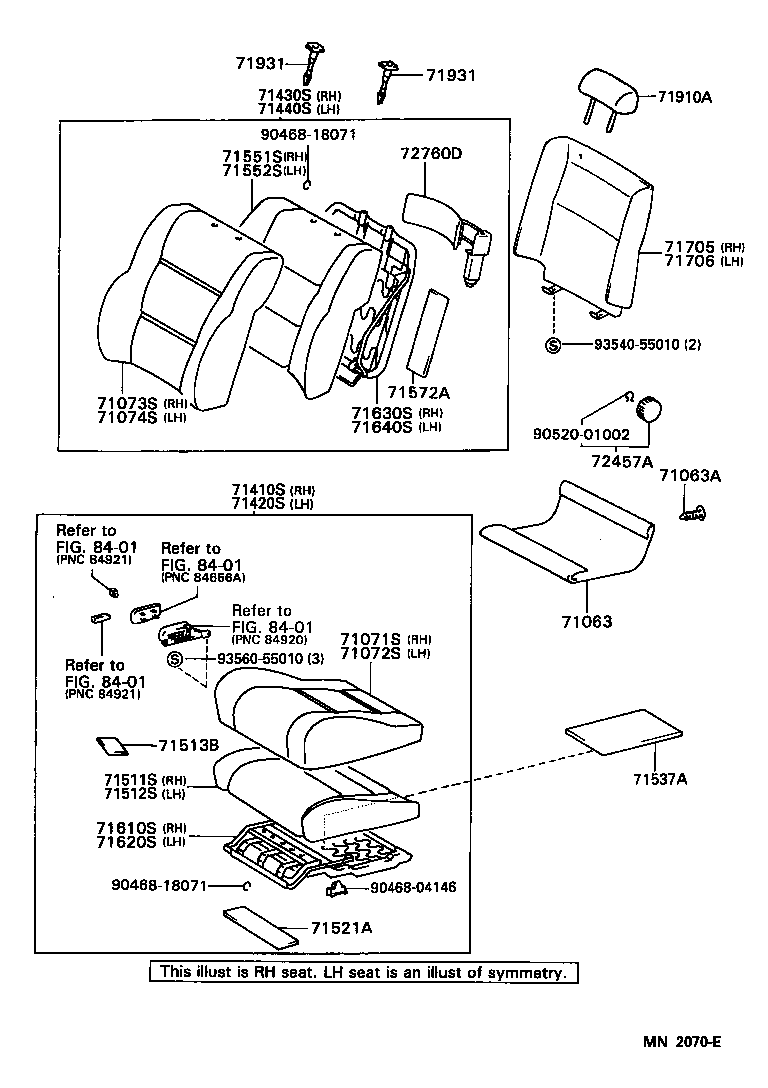

FRONT SEAT ILLUST NO. 1 OF 4(9608- )

LX450 | SEAT SEAT TRACK 71063 - COVER SUB-ASSY, FRONT SEAT BACK, REAR 71063A - CLIP, FRONT SEAT BACK COVER, REAR 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71513B - PAD, FRONT SEAT CUSHION, B 71521A - PAD,FRONT SEAT CUSHION SILENCER 71537A - PROTECTOR, FRONT SEAT CUSHION 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71572A - PAD, FRONT SEAT BACK SILENCER, B 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72457A - KNOB, SEAT ADJUSTER 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
