LEXUS SC300 400 UZZ30L-ACPZKK / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VACUUM PIPING

(9608-9709)1UZFE

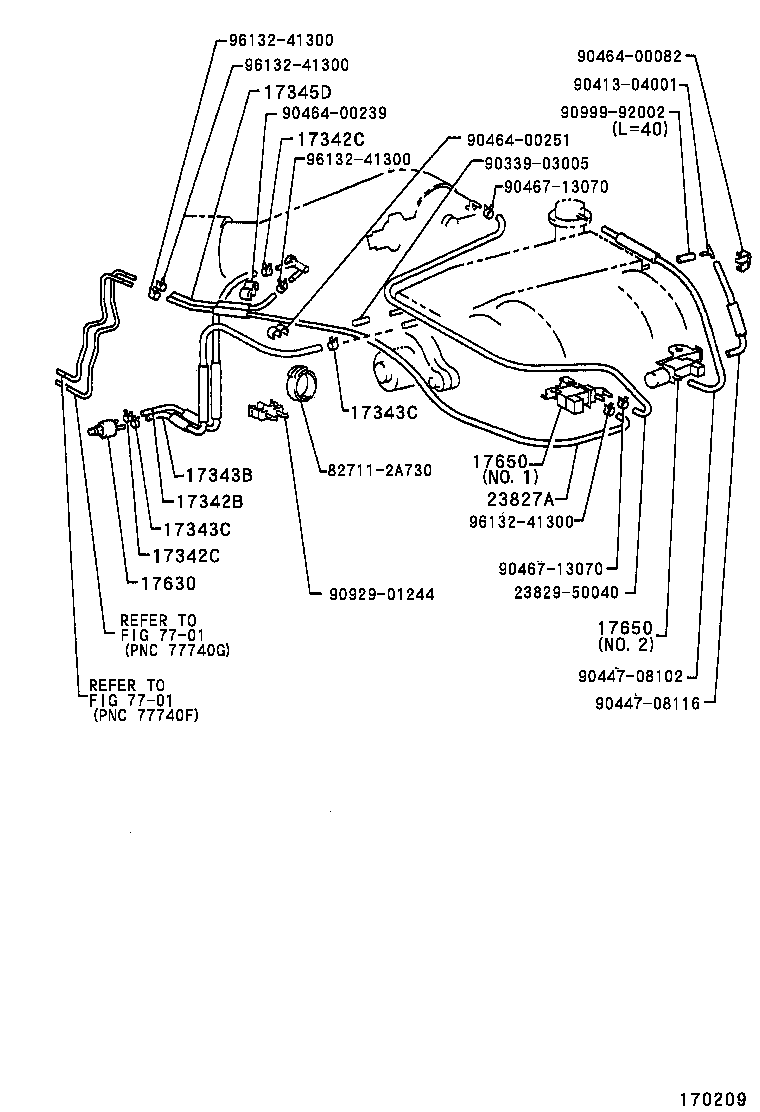

 SC300 400 |  VACUUM PIPING 17342B - HOSE, NO.2(FOR IDLE-UP) 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) 17343B - HOSE, NO.3(FOR IDLE-UP) 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) 17345D - HOSE, AIR, NO.5 17630 - VALVE ASSY, AIR CONTROL 17650 - VALVE ASSY, VACUUM SWITCHING 17650 - VALVE ASSY, VACUUM SWITCHING 23827A - HOSE, FUEL VAPOR FEED, NO.2  ** Std Part ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
