LEXUS SC300 400 UZZ30L-ACAZKA / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

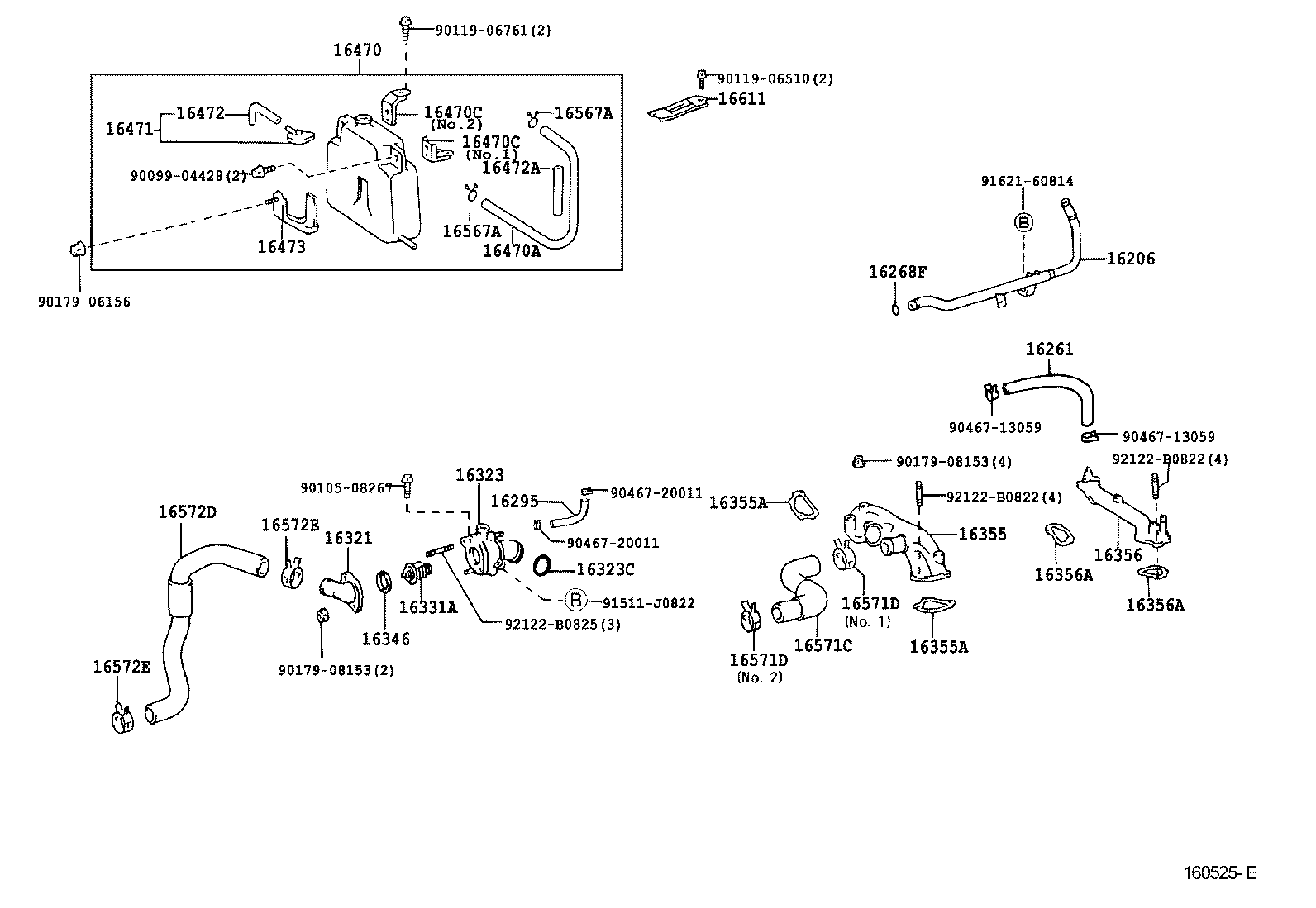

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 3(9709- )1UZFE

SC300 400 | RADIATOR WATER OUTLET 16206 - PIPE SUB-ASSY, WATER BY-PASS 16261 - HOSE, WATER BY-PASS 16268F - RING, O(FOR WATER BY-PASS PIPE) 16295 - HOSE, WATER BY-PASS, NO.7 16321 - INLET, WATER 16323 - HOUSING, WATER INLET 16323C - RING, O(FOR WATER INLET HOUSING) 16331A - THERMOSTAT 16346 - GASKET, THERMOSTAT 16355 - JOINT, WATER BY-PASS, FRONT 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16356 - JOINT, WATER BY-PASS, REAR 16356A - GASKET(WATER BY-PASS JOINT, REAR) 16356A - GASKET(WATER BY-PASS JOINT, REAR) 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470C - BRACKET(FOR RADIATOR RESERVE TANK) 16470C - BRACKET(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16472A - PROTECTOR, HOSE 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16611 - BRACKET, RADIATOR RESERVE TANK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
