LEXUS IS300 JCE10L-AEAVFA / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

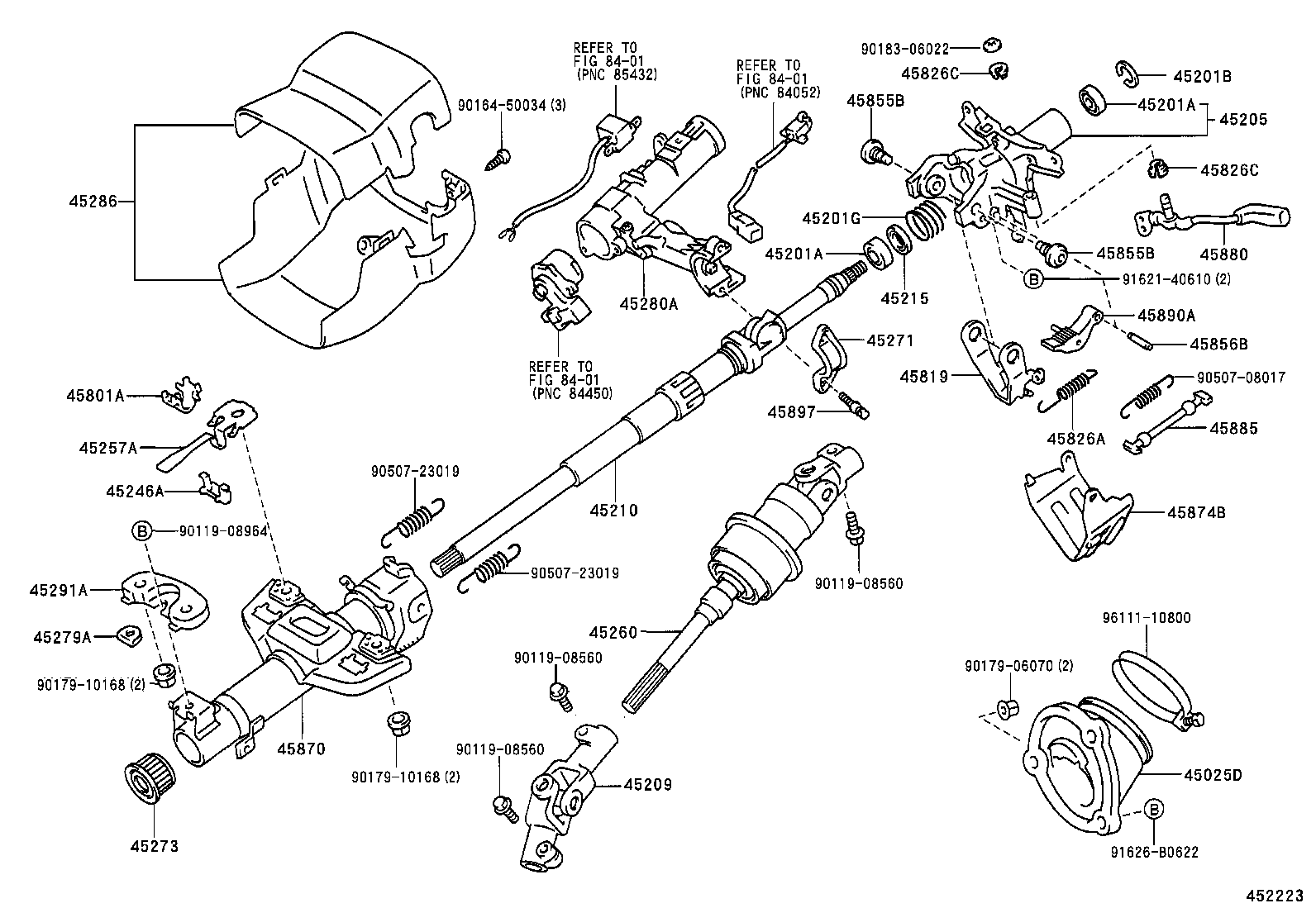

STEERING COLUMN SHAFT

(0005-0107)

IS300 | STEERING COLUMN SHAFT 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45205 - TUBE SUB-ASSY, STEERING COLUMN 45209 - YOKE SUB-ASSY, STEERING SLIDING 45210 - SHAFT ASSY, STEERING MAIN 45215 - COLLAR, MAIN SHAFT BEARING THRUST 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 45271 - CLAMP, STEERING COLUMN, UPPER 45273 - BUSH, STEERING MAIN SHAFT 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45286 - COVER, STEERING COLUMN 45291A - SUPPORT, STEERING COLUMN TUBE 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING 45819 - RETAINER, TILT LEVER 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) 45826C - BUSH(FOR STEERING TILT LEVER) 45826C - BUSH(FOR STEERING TILT LEVER) 45855B - SHAFT, T1LT STEERING, NO.1 45855B - SHAFT, T1LT STEERING, NO.1 45856B - SHAFT, T1LT STEERING, NO.2 45870 - TUBE ASSY, STEERING COLUMN 45874B - PROTECTOR, STEERING COLUMN, NO.1 45880 - LEVER ASSY, STEERING TILT 45885 - LINK, TILT LEVER 45890A - PAWL ASSY, TILT STEERING 45897 - BOLT, STEERING LOCK SET ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
