LEXUS IS300 JCE10L-AEAVFA / TOOL-ENGINE-FUEL / ENGINE OIL PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ENGINE OIL PUMP

(0005-0107)

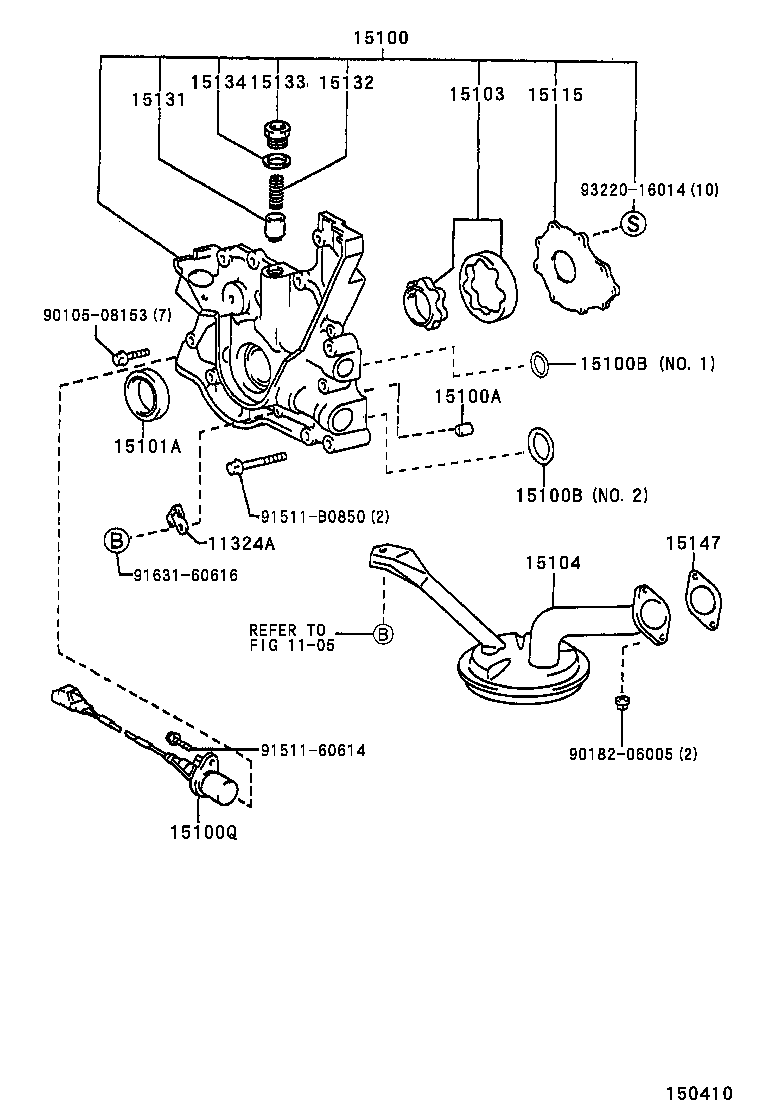

IS300 | ENGINE OIL PUMP ** Refer Fig 11324A - PLATE, TIMING BELT 15100 - PUMP ASSY, OIL 15100A - PIN, RING(FOR OIL PUMP SET) 15100B - RING, O(FOR OIL PUMP) 15100B - RING, O(FOR OIL PUMP) 15100Q - SENSOR, CRANK POSITION 15101A - SEAL(FOR CRANKSHAFT) 15103 - GEAR SET, OIL PUMP 15104 - STRAINER SUB-ASSY, OIL 15115 - COVER, OIL PUMP 15131 - VALVE, OIL PUMP RELIEF 15132 - SPRING, OIL PUMP RELIEF VALVE 15133 - PLUG, OIL PUMP RELIEF VALVE 15134 - GASKET, OIL PUMP RELIEF VALVE 15147 - GASKET, OIL STRAINER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
