LEXUS LS400 UCF20L-AEAGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

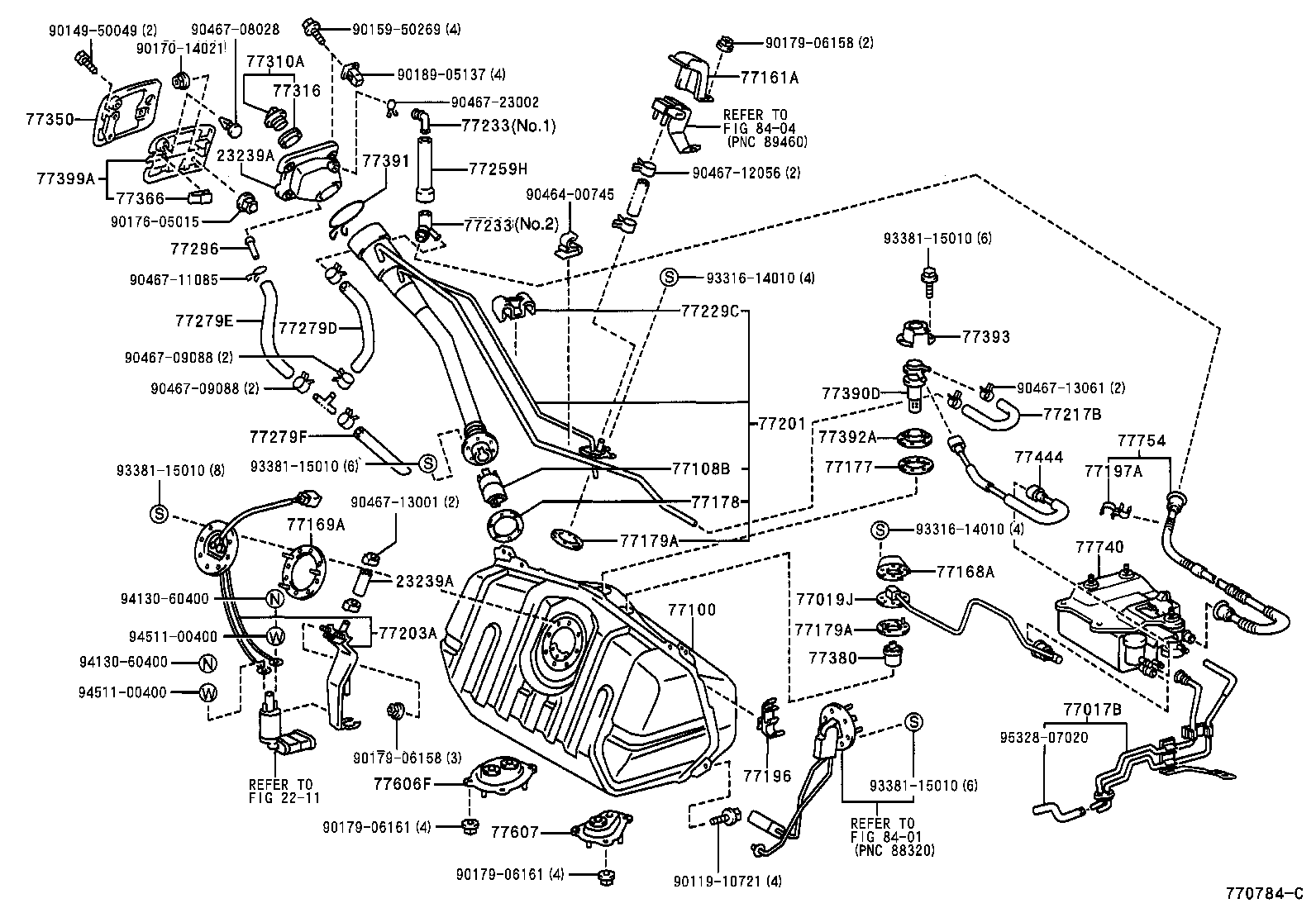

FUEL TANK TUBE

ILLUST NO. 1 OF 2(9908- )

LS400 | FUEL TANK TUBE ** Refer Fig 23239A - HOSE 23239A - HOSE 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER 77100 - TANK ASSY, FUEL 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK 77161A - BRACKET, FUEL TANK MOUNTING, FRONT 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77177 - GASKET, CHECK VALVE 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179A - GASKET, FUEL TANK BREATHER TUBE 77179A - GASKET, FUEL TANK BREATHER TUBE 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77203A - TUBE SUB-ASSY, FUEL SUCTION 77217B - HOSE, FUEL TANK INLET 77229C - CLAMP, BREATHER TUBE 77233 - JOINT, FUEL HOSE 77233 - JOINT, FUEL HOSE 77259H - HOSE, FUEL TANK FILLER PIPE SHIELD TO CANISTER 77279D - HOSE, FUEL TANK FILLER PIPE SHIELD, NO.1 77279E - HOSE, FUEL TANK FILLER PIPE SHIELD, NO.2 77279F - HOSE, FUEL TANK FILLER PIPE SHIELD, NO.3 77296 - PLATE, FUEL TUBE GROMMET SUPPORT 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77380 - VALVE ASSY, FUEL CUT OFF 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK 77391 - RING, FUEL INLET BOX 77392A - SUPPORT, CHECK VALVE 77393 - PROTECTOR, CHECK VALVE 77399A - COVER, FUEL FILLER OPENING LID 77444 - HOSE, FUEL TANK VENT 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT 77607 - CASE SUB-ASSY, FUEL TANK COVER VENT, LH 77740 - CANISTER ASSY, CHARCOAL 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
