LEXUS SC300 400 JZZ31L-ACPVFA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

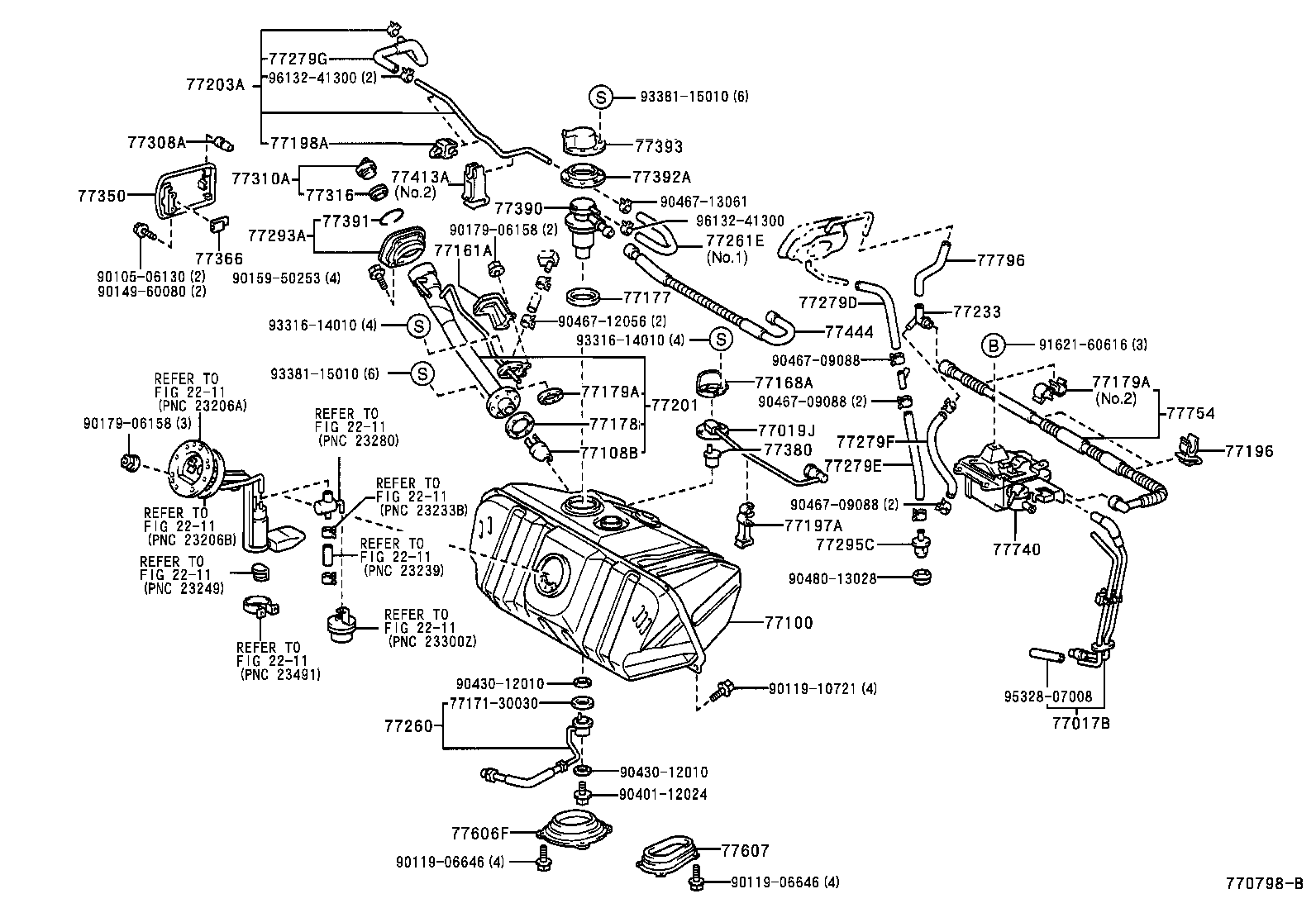

ILLUST NO. 1 OF 2(9908- )

SC300 400 | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER 77100 - TANK ASSY, FUEL 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK 77161A - BRACKET, FUEL TANK MOUNTING, FRONT 77168A - PLATE, FUEL TANK VENT TUBE SET ** Std Part 77177 - GASKET, CHECK VALVE 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179A - GASKET, FUEL TANK BREATHER TUBE 77179A - GASKET, FUEL TANK BREATHER TUBE 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77198A - CLAMP, EVAPORATION VENT TUBE, NO.3 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77203A - TUBE SUB-ASSY, FUEL SUCTION 77233 - JOINT, FUEL HOSE 77260 - HOSE ASSY, FUEL MAIN 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77279D - HOSE, FUEL TANK FILLER PIPE SHIELD, NO.1 77279E - HOSE, FUEL TANK FILLER PIPE SHIELD, NO.2 77279F - HOSE, FUEL TANK FILLER PIPE SHIELD, NO.3 77279G - HOSE, FUEL, NO.2 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77295C - GROMMET, FUEL TUBE 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77380 - VALVE ASSY, FUEL CUT OFF 77390 - VALVE ASSY, FUEL TANK INLET 77391 - RING, FUEL INLET BOX 77392A - SUPPORT, CHECK VALVE 77393 - PROTECTOR, CHECK VALVE 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77444 - HOSE, FUEL TANK VENT 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT 77607 - CASE SUB-ASSY, FUEL TANK COVER VENT, LH 77740 - CANISTER ASSY, CHARCOAL 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77796 - HOSE, CHARCOAL CANISTER OUTLET, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
