LEXUS GS300 400 430 JZS160L-BEAQFA / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

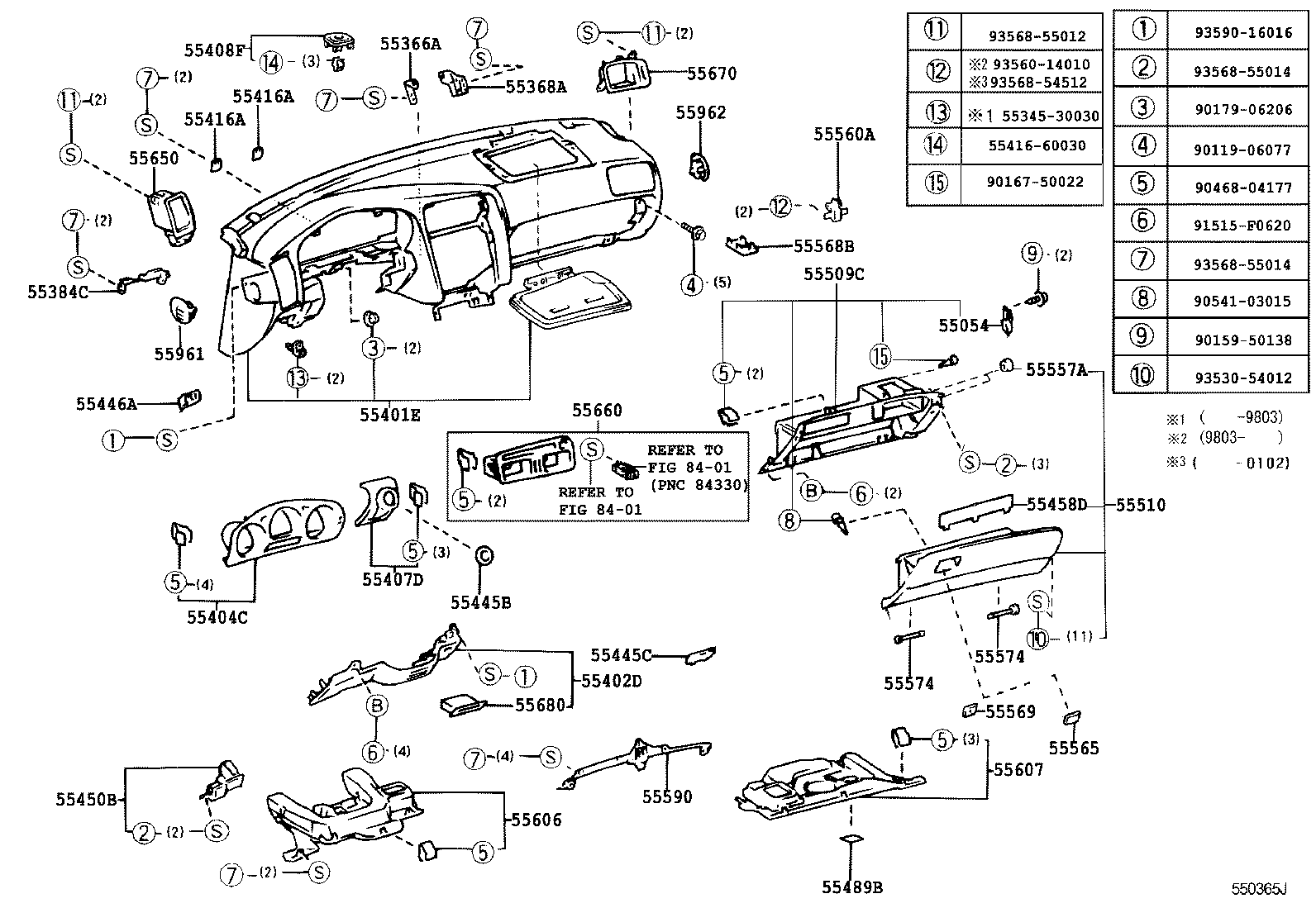

ILLUST NO. 1 OF 2(9708- )

GS300 400 430 | INSTRUMENT PANEL GLOVE COMPARTMENT 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR ** Std Part 55366A - BRACKET, RADIO MOUNTING, NO.1 55368A - BRACKET, RADIO MOUNTING, NO.2 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55407D - PAD SUB-ASSY, INSTRUMENT PANEL, END 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 ** Std Part 55416A - RETAINER, METER HOOD, NO.1 55416A - RETAINER, METER HOOD, NO.1 55445B - PLATE, INSTRUMENT PANEL FINISH 55445C - PLATE, INSTRUMENT PANEL BOX 55446A - BASE, SWITCH HOLE, NO.1 55450B - BOX ASSY, COIN 55458D - COVER, INSTRUMENT LOWER, RH 55489B - LENS, FRONT FOOT LAMP, NO.2 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT 55510 - DOOR ASSY, GLOVE COMPARTMENT 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 55961 - NOZZLE, SIDE DEFROSTER, NO.1 55962 - NOZZLE, SIDE DEFROSTER, NO.2 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
