LEXUS LS430 UCF30L-AEAGKA / ELECTRICAL / RADIO RECEIVER AMPLIFIER CONDENSER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIO RECEIVER AMPLIFIER CONDENSER

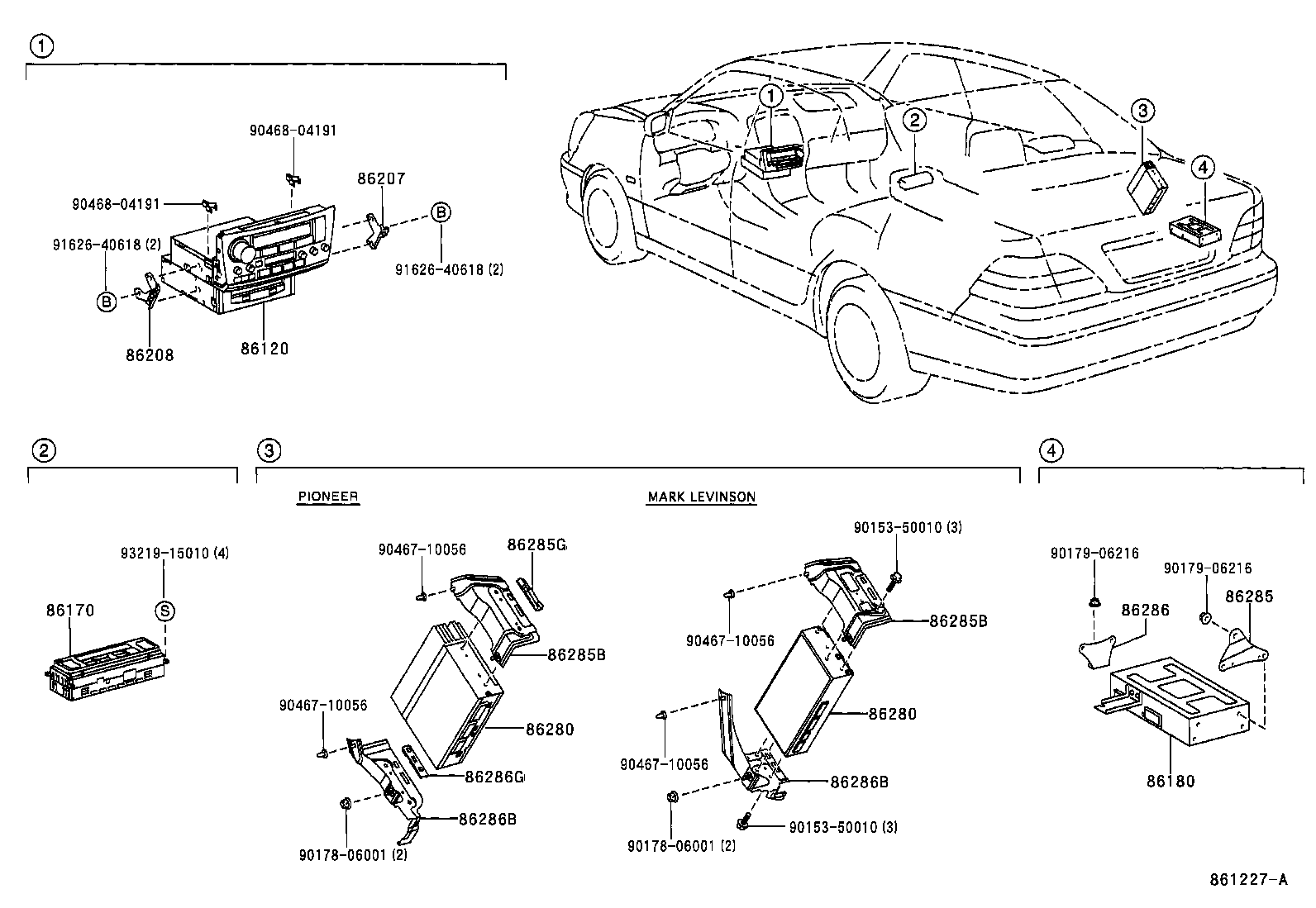

ILLUST NO. 1 OF 3(0008-0307)

LS430 | RADIO RECEIVER AMPLIFIER CONDENSER 86120 - RECEIVER ASSY, RADIO 86170 - SWITCH AND VOLUME ASSY, RADIO 86180 - TUNER ASSY, STEREO COMPONENT 86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH 86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH 86280 - AMPLIFIER ASSY, STEREO COMPONENT 86280 - AMPLIFIER ASSY, STEREO COMPONENT 86285 - BRACKET, AMPLIFIER, NO.1 86285B - BRACKET, AMPLIFIER, NO.1 86285B - BRACKET, AMPLIFIER, NO.1 86285G - GUIDE, AMPLIFIER BRACKET, NO.1 86286 - BRACKET, AMPLIFIER, NO.2 86286B - BRACKET, AMPLIFIER, NO.2 86286B - BRACKET, AMPLIFIER, NO.2 86286G - GUIDE, AMPLIFIER BRACKET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
