LEXUS LS430 UCF30L-AEAGKK / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

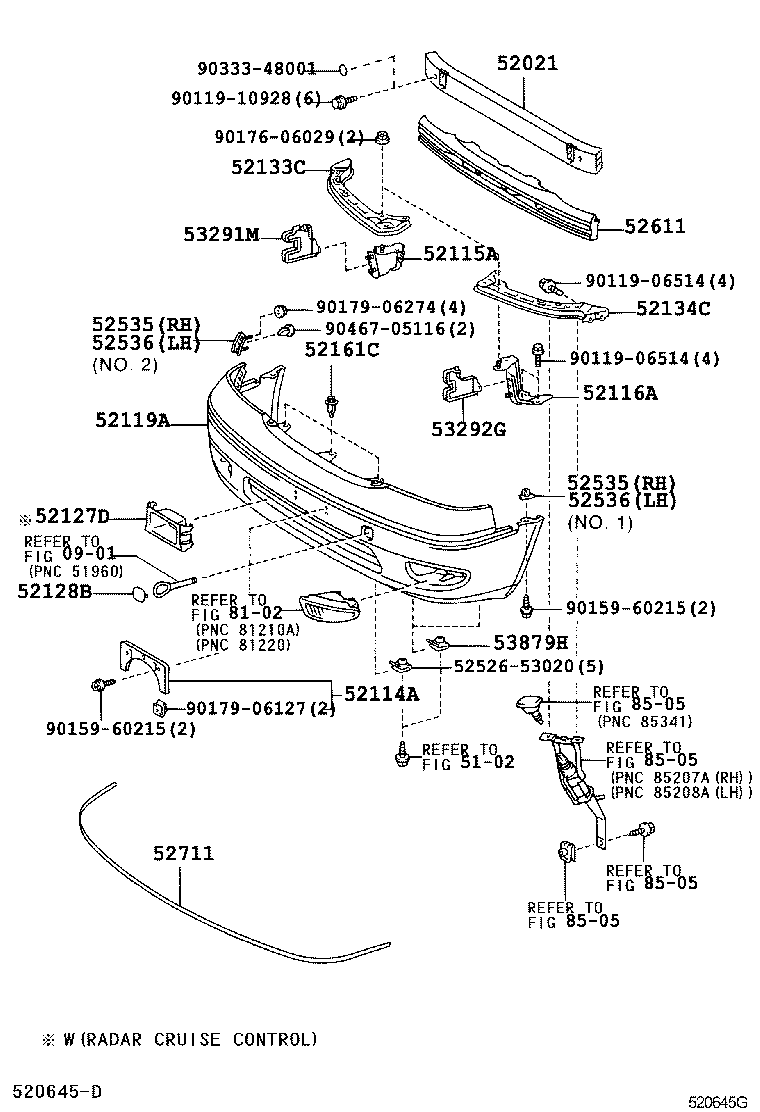

FRONT BUMPER BUMPER STAY

(0008-0307)

 LS430 |  FRONT BUMPER BUMPER STAY ** Refer Fig ** Refer Fig 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52115A - SUPPORT, FRONT BUMPER SIDE, RH 52116A - SUPPORT, FRONT BUMPER SIDE, LH 52119A - COVER, FRONT BUMPER 52127D - COVER, FRONT BUMPER HOLE, RH 52128B - COVER, FRONT BUMPER HOLE, LH 52133C - REINFORCEMENT, FRONT BUMPER BAR, RH 52134C - REINFORCEMENT, FRONT BUMPER BAR, LH 52161C - PIECE, FRONT BUMPER  ** Std Part 52535 - RETAINER, FRONT BUMPER SIDE, RH 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52611 - ABSORBER, FRONT BUMPER ENERGY 52711 - MOULDING, FRONT BUMPER 53291M - SEAL, RADIATOR SUPPORT TO FRAME, RH 53292G - SEAL, RADIATOR SUPPORT TO FRAME, LH 53879H - RETAINER, FRONT FENDER LINER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
