LEXUS LS430 UCF30L-AEAGKK / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

(0008-0307)

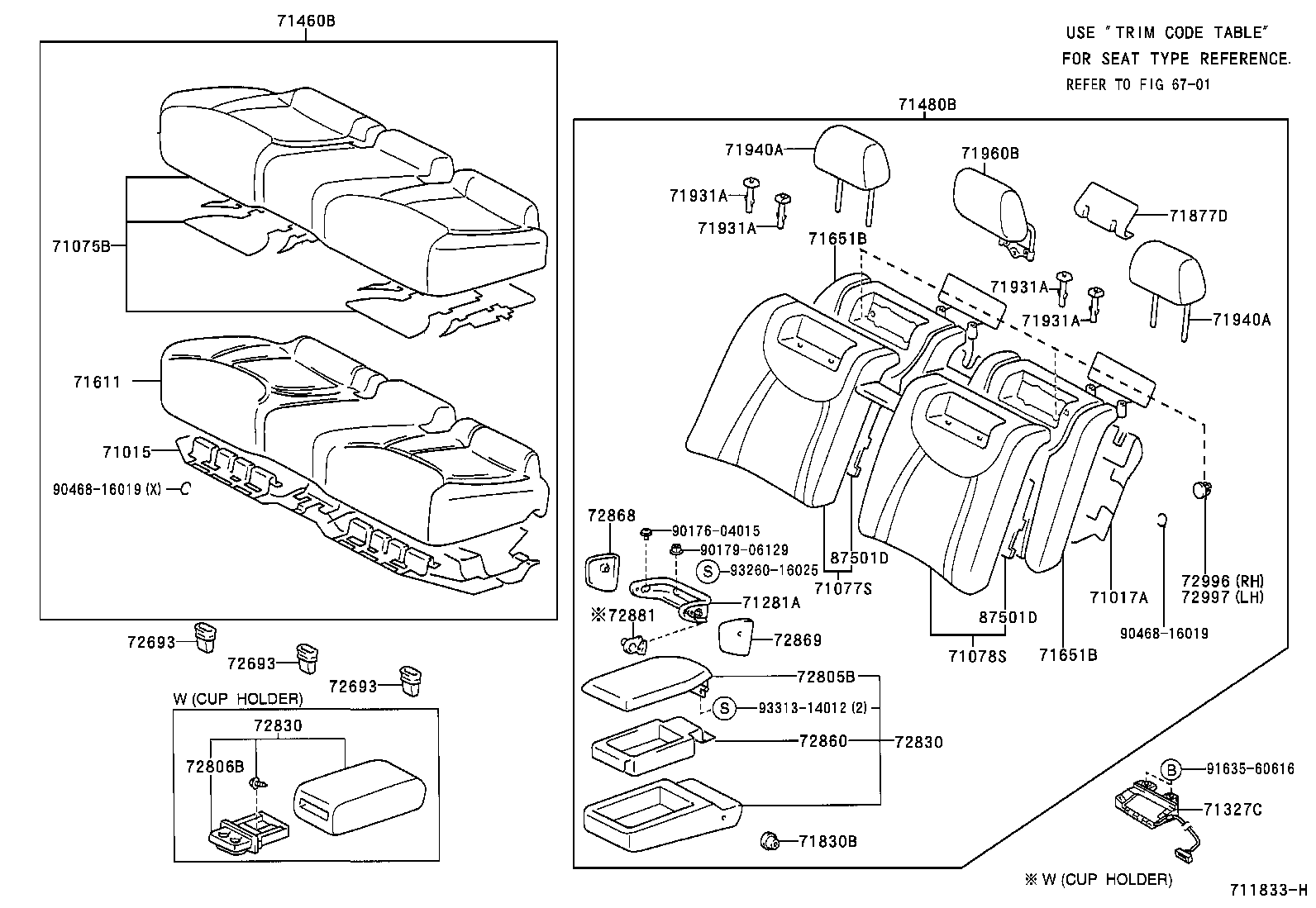

LS430 | REAR SEAT SEAT TRACK ** Refer Fig 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION 71017A - FRAME SUB-ASSY, REAR SEAT BACK 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71281A - HINGE, REAR SEAT CENTER ARMREST 71327C - BRACKET, REAR SEAT CUSHION 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) 71611 - PAD, REAR SEAT CUSHION 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) 71830B - BUSH(FOR REAR SEAT ARMREST) 71877D - COVER, REAR SEAT ARMREST HOLE 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72693 - HOOK, REAR SEAT CUSHION LOCK 72693 - HOOK, REAR SEAT CUSHION LOCK 72693 - HOOK, REAR SEAT CUSHION LOCK 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP 72830 - ARMREST ASSY, REAR SEAT, CENTER 72830 - ARMREST ASSY, REAR SEAT, CENTER 72860 - BOX ASSY, REAR SEAT CENTER ARMREST 72868 - COVER, CENTER ARMREST HINGE, RH 72869 - COVER, CENTER ARMREST HINGE, LH 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH 72996 - COVER, REAR SEAT BACK, RH 72997 - COVER, REAR SEAT BACK, LH 87501D - CONTROL SUB-ASSY, SEAT HEATER 87501D - CONTROL SUB-ASSY, SEAT HEATER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
