LEXUS LX470 UZJ100L-GNAGKA / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

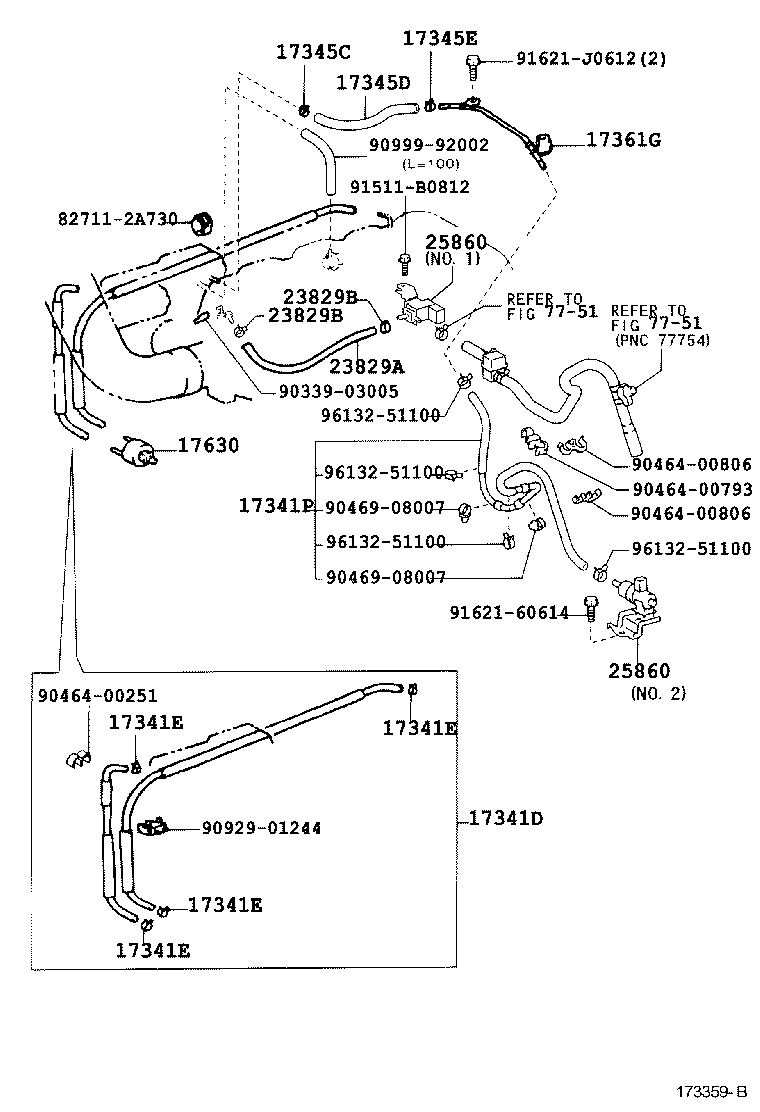

VACUUM PIPING

(0208-0505)

LX470 | VACUUM PIPING 17341D - HOSE, NO.1(FOR IDLE-UP) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) 17341P - HOSE, AIR 17345C - CLIP, NO.5(FOR IDLE-UP HOSE) 17345D - HOSE, AIR, NO.5 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17361G - TUBE, AIR(FOR IDLE-UP) 17630 - VALVE ASSY, AIR CONTROL 23829A - HOSE, FUEL VAPOR FEED 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
