LEXUS ES300 330 MCV31L-BEAGKA / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

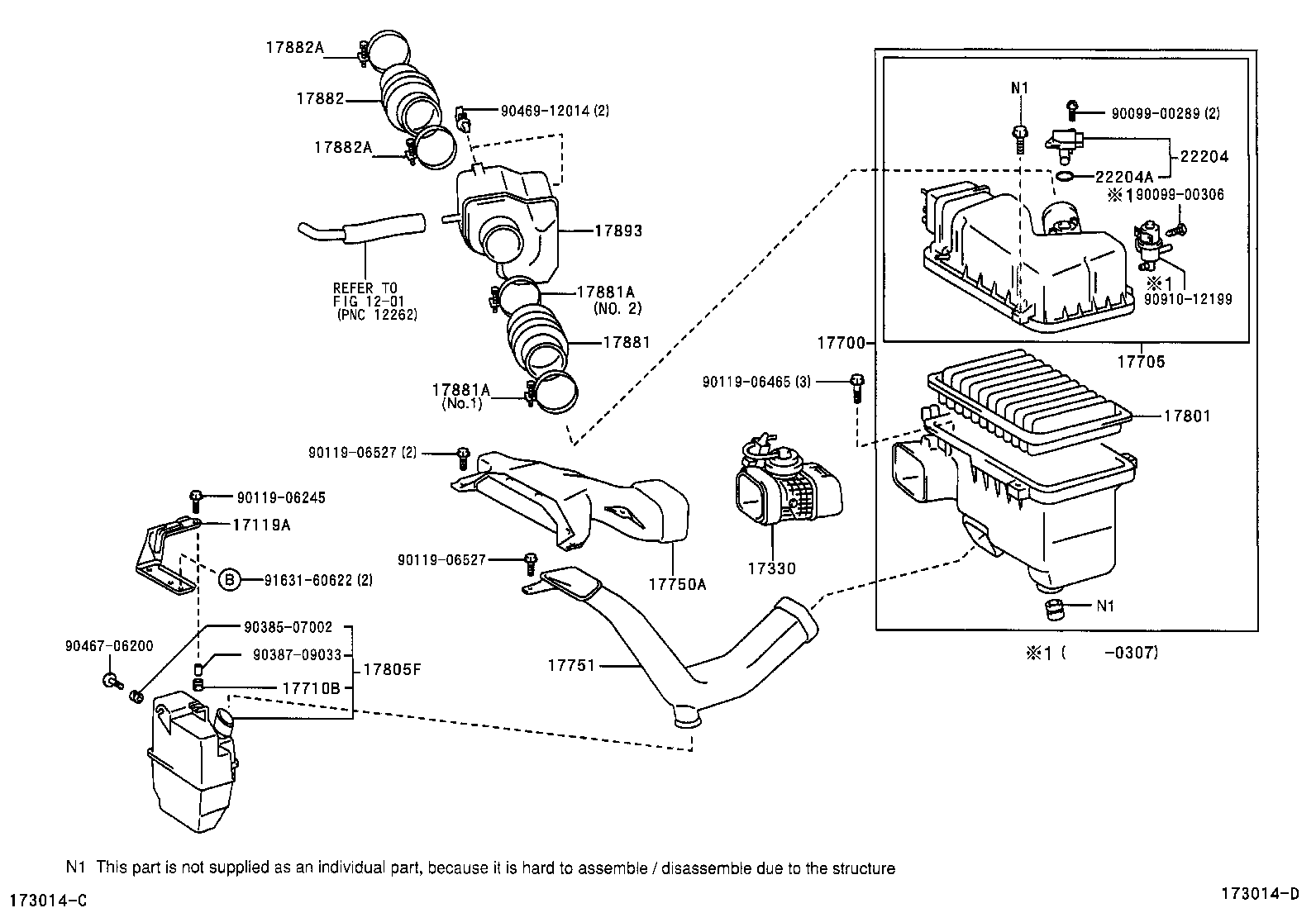

AIR CLEANER

(0107- )

ES300 330 | AIR CLEANER ** Refer Fig 17119A - BRACKET, AIR CLEANER 17330 - VALVE ASSY, INTAKE AIR CONTROL, NO.3 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17710B - GROMMET 17750A - INLET ASSY, AIR CLEANER 17751 - INLET, AIR CLEANER, NO.1 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805F - RESONATOR SUB-ASSY, INTAKE AIR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17893 - RESONATOR, INTAKE AIR 22204 - METER SUB-ASSY, INTAKE AIR FLOW 22204A - RING, O(FOR INTAKE AIR FLOW METER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
