LEXUS LS430 UCF30L-AETGKA / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

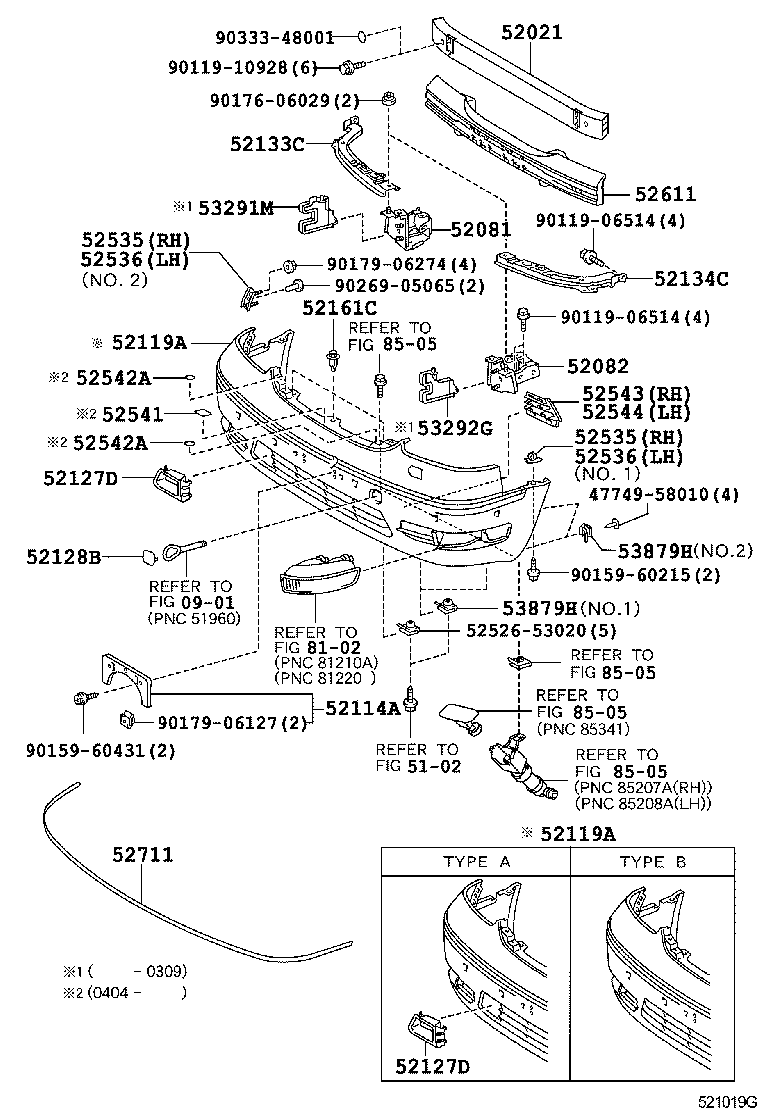

FRONT BUMPER BUMPER STAY

(0307- )

LS430 | FRONT BUMPER BUMPER STAY ** Refer Fig ** Std Part ** Refer Fig 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52081 - STAY SUB-ASSY, FRONT BUMPER 52082 - STAY SUB-ASSY, FRONT BUMPER, LH 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52119A - COVER, FRONT BUMPER 52119A - COVER, FRONT BUMPER 52127D - COVER, FRONT BUMPER HOLE, RH 52127D - COVER, FRONT BUMPER HOLE, RH 52128B - COVER, FRONT BUMPER HOLE, LH 52133C - REINFORCEMENT, FRONT BUMPER BAR, RH 52134C - REINFORCEMENT, FRONT BUMPER BAR, LH 52161C - PIECE, FRONT BUMPER ** Std Part 52535 - RETAINER, FRONT BUMPER SIDE, RH 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52541 - PROTECTOR, FRONT BUMPER 52542A - PROTECTOR, FRONT BUMPER, NO.2 52542A - PROTECTOR, FRONT BUMPER, NO.2 52543 - SEAL, FRONT BUMPER SIDE, RH 52544 - SEAL, FRONT BUMPER SIDE, LH 52611 - ABSORBER, FRONT BUMPER ENERGY 52711 - MOULDING, FRONT BUMPER 53291M - SEAL, RADIATOR SUPPORT TO FRAME, RH 53292G - SEAL, RADIATOR SUPPORT TO FRAME, LH 53879H - RETAINER, FRONT FENDER LINER 53879H - RETAINER, FRONT FENDER LINER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
