LEXUS SC430 UZZ40L-DKAQKA / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

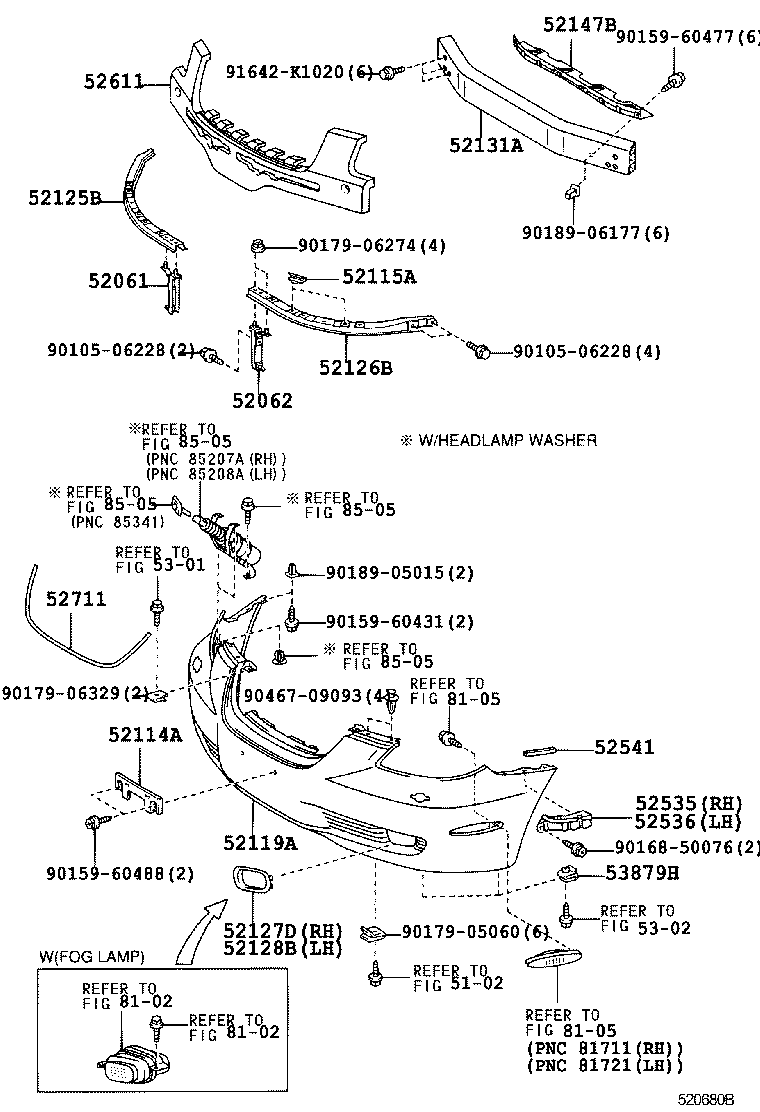

FRONT BUMPER BUMPER STAY

(0101-0508)

 SC430 |  FRONT BUMPER BUMPER STAY ** Refer Fig 52061 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH 52062 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52115A - SUPPORT, FRONT BUMPER SIDE, RH 52119A - COVER, FRONT BUMPER 52125B - EXTENSION, FRONT BUMBER REINFORCEMENT, RH 52126B - EXTENSION, FRONT BUMBER REINFORCEMENT, LH 52127D - COVER, FRONT BUMPER HOLE, RH 52128B - COVER, FRONT BUMPER HOLE, LH 52131A - REINFORCEMENT, FRONT BUMPER 52147B - BRACKET, FRONT BUMPER MOUNTING 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52541 - PROTECTOR, FRONT BUMPER 52611 - ABSORBER, FRONT BUMPER ENERGY 52711 - MOULDING, FRONT BUMPER ** Refer Fig ** Refer Fig 53879H - RETAINER, FRONT FENDER LINER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
