LEXUS IS F USE20L-FEZRHA / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

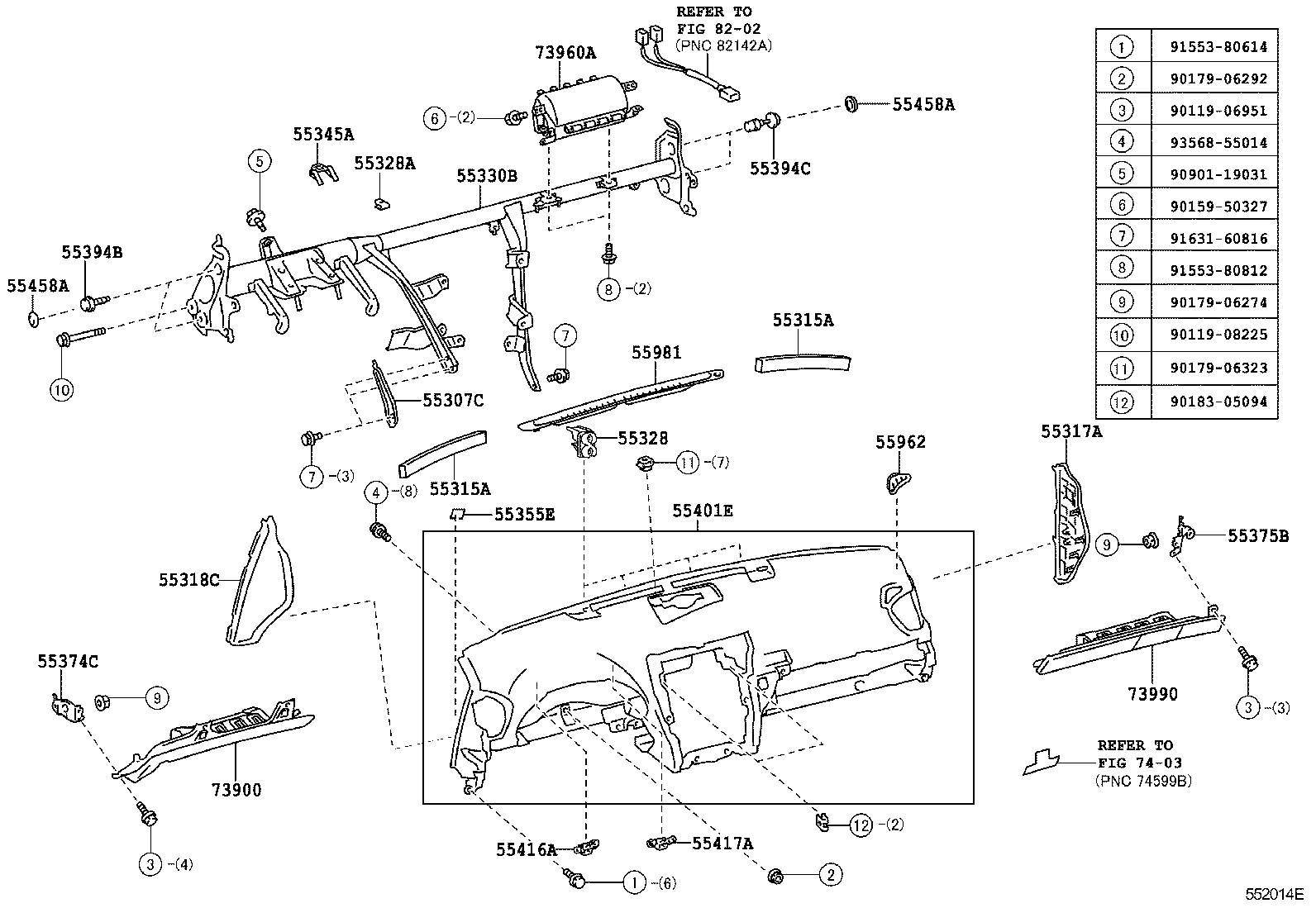

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 1 OF 2(0801-0908)

IS F | INSTRUMENT PANEL GLOVE COMPARTMENT 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55315A - SPACER, INSTRUMENT PANEL, NO.1 55315A - SPACER, INSTRUMENT PANEL, NO.1 55317A - PANEL, INSTRUMENT SIDE, RH 55318C - PANEL, INSTRUMENT SIDE, LH 55328 - PIN, INSTRUMENT PANEL, NO.1 55328A - STAY, INSTRUMENT PANEL, NO.3 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55345A - CLIP, INSTRUMENT PANEL, NO.1 55355E - CUSHION, INSTRUMENT PANEL 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 55394B - BOLT, INSTRUMENT PANEL 55394C - BOLT, INSTRUMENT PANEL 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY 55416A - RETAINER, METER HOOD, NO.1 55417A - RETAINER, METER HOOD, NO.2 55458A - CAP, INSTRUMENT PANEL SAFETY PAD 55458A - CAP, INSTRUMENT PANEL SAFETY PAD 55962 - NOZZLE, SIDE DEFROSTER, NO.2 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
