LEXUS IS250C 350C GSE20L-AKFLHA / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

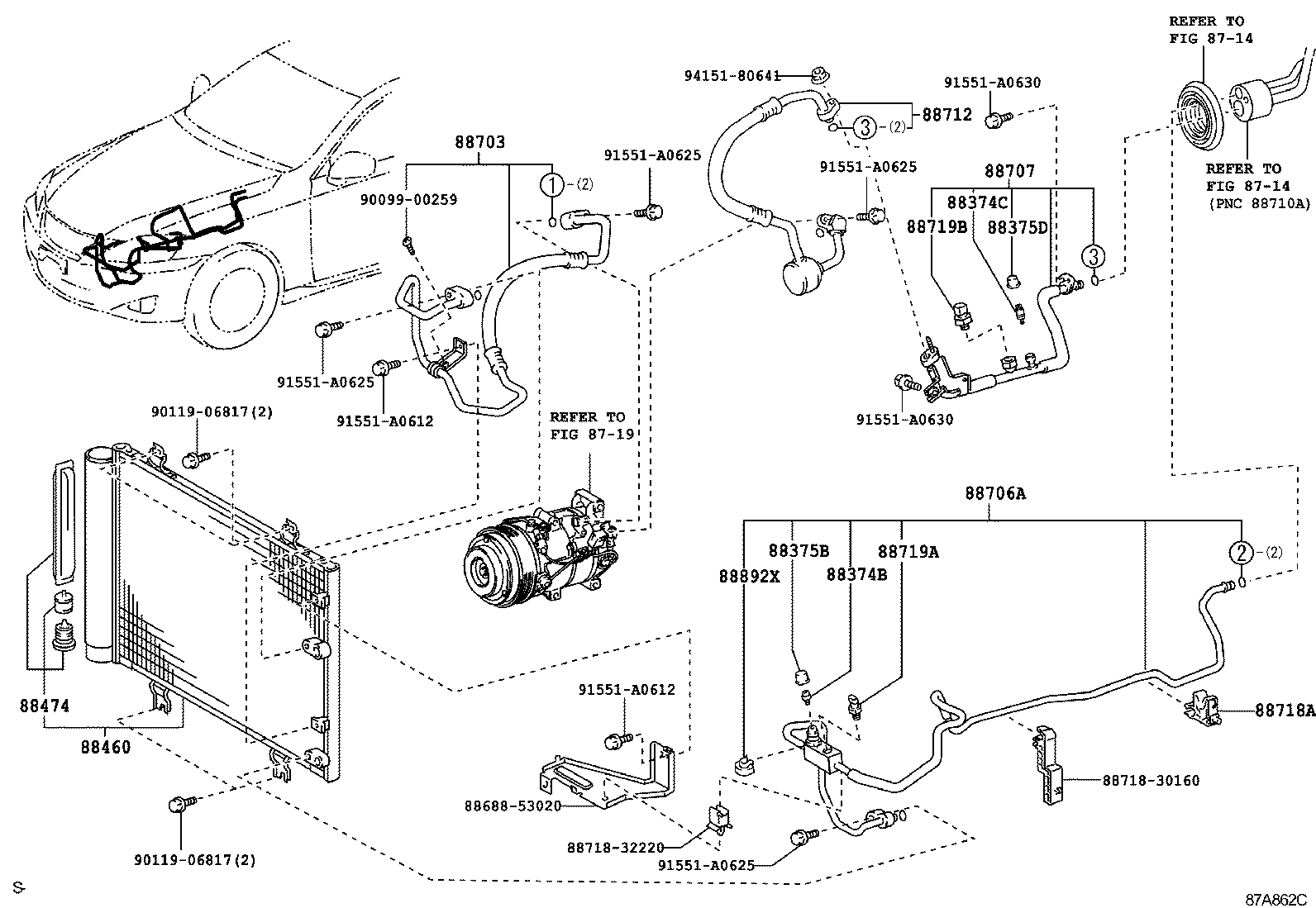

ILLUST NO. 1 OF 2(0904- )6F

 IS250C 350C |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER  ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88706A - TUBE SUB-ASSY, LIQUID, A 88707 - PIPE SUB-ASSY, SUCTION 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1  ** Std Part  ** Std Part 88718A - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.1 88719A - SENSOR, AIRCONDITIONER PRESSURE 88719B - SENSOR, AIRCONDITIONER PRESSURE, NO.2 88892X - COVER, COOLER, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
