LEXUS ES350 GSV40L-BETGKA / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

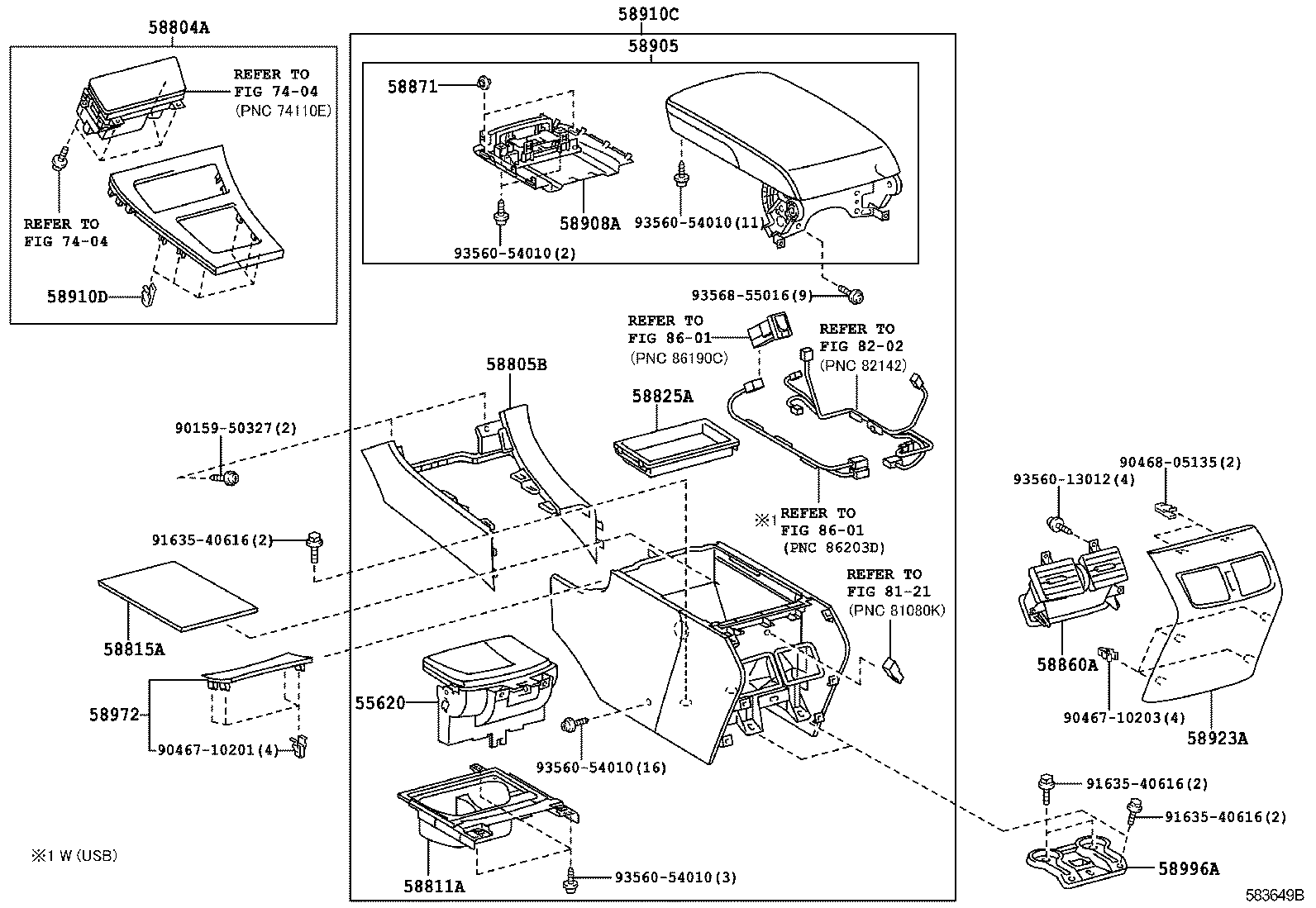

CONSOLE BOX BRACKET

(0908- )

ES350 | CONSOLE BOX BRACKET 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP 58804A - PANEL SUB-ASSY, CONSOLE, UPPER 58805B - PANEL SUB-ASSY, CONSOLE, LOWER 58811A - BOX, CONSOLE, FRONT 58815A - CARPET, CONSOLE BOX 58825A - POCKET, CONSOLE BOX 58860A - REGISTER ASSY, CONSOLE BOX 58871 - CUSHION, CONSOLE BOX 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58910C - BOX ASSY, CONSOLE, REAR 58910D - CLIP(FOR CONSOLE BOX) 58923A - PANEL, CONSOLE REAR END 58972 - BASE, HEATER SEAT SWITCH CONSOLE 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
