LEXUS GS250 350 450H GRL10L-BETQHA / ELECTRICAL / HEADLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEADLAMP

DISCHARGE HEADLAMP (1112- )

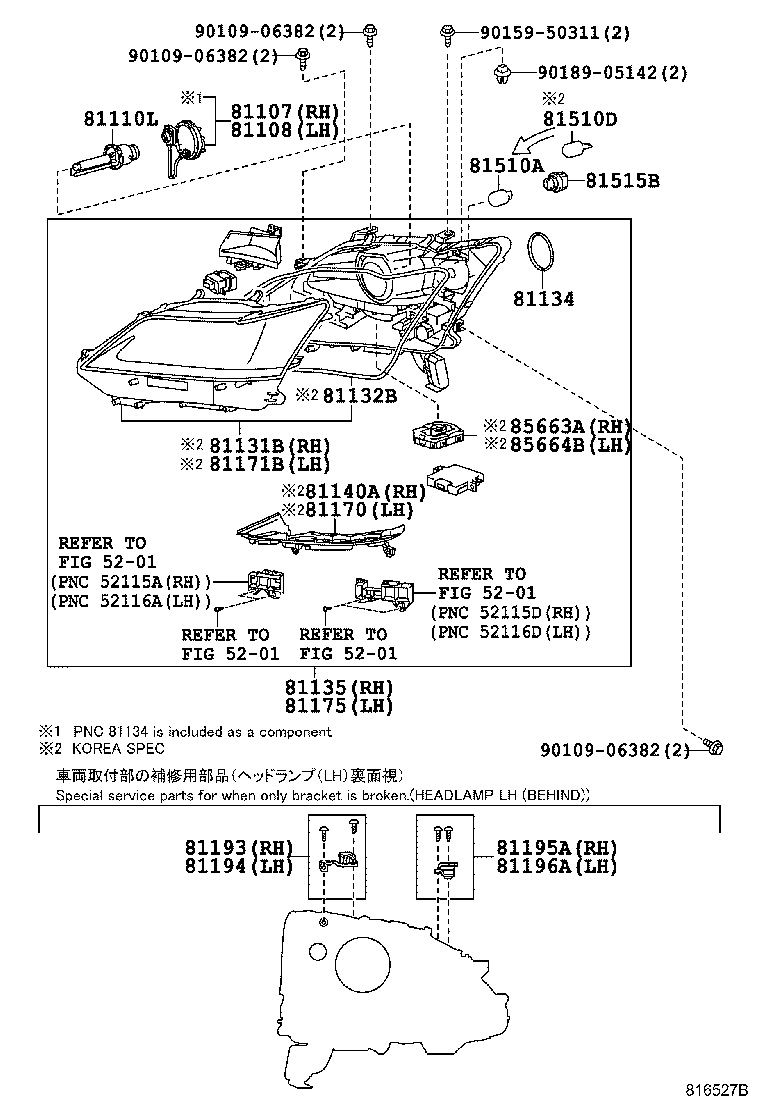

 GS250 350 450H |  HEADLAMP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH 81110L - BULB, DISCHARGE HEADLAMP 81131B - HEAD LAMP LENS, RH 81132B - GASKET, HEADLAMP LENS 81134 - GASKET, HEADLAMP 81135 - UNIT ASSY, HEADLAMP, RH 81140A - UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, RH 81170 - UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, LH 81171B - HEAD LAMP LENS, LH 81175 - UNIT ASSY, HEADLAMP, LH 81193 - RETAINER, HEADLAMP PROTECTOR, UPR RH 81194 - RETAINER, HEADLAMP PROTECTOR, UPR LH 81195A - RETAINER, HEADLAMP PROTECTOR, LWR RH 81196A - RETAINER, HEADLAMP PROTECTOR, LWR LH 81510A - BULB, FRONT TURN SIGNAL & PARKING LAMP 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) 81515B - SOCKET, FRONT TURN SIGNAL LAMP 85663A - MOTOR, HEADLAMP SWIVEL, RH 85664B - MOTOR, HEADLAMP SWIVEL, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
