LEXUS GS250 350 450H GRL10L-BETQHA / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

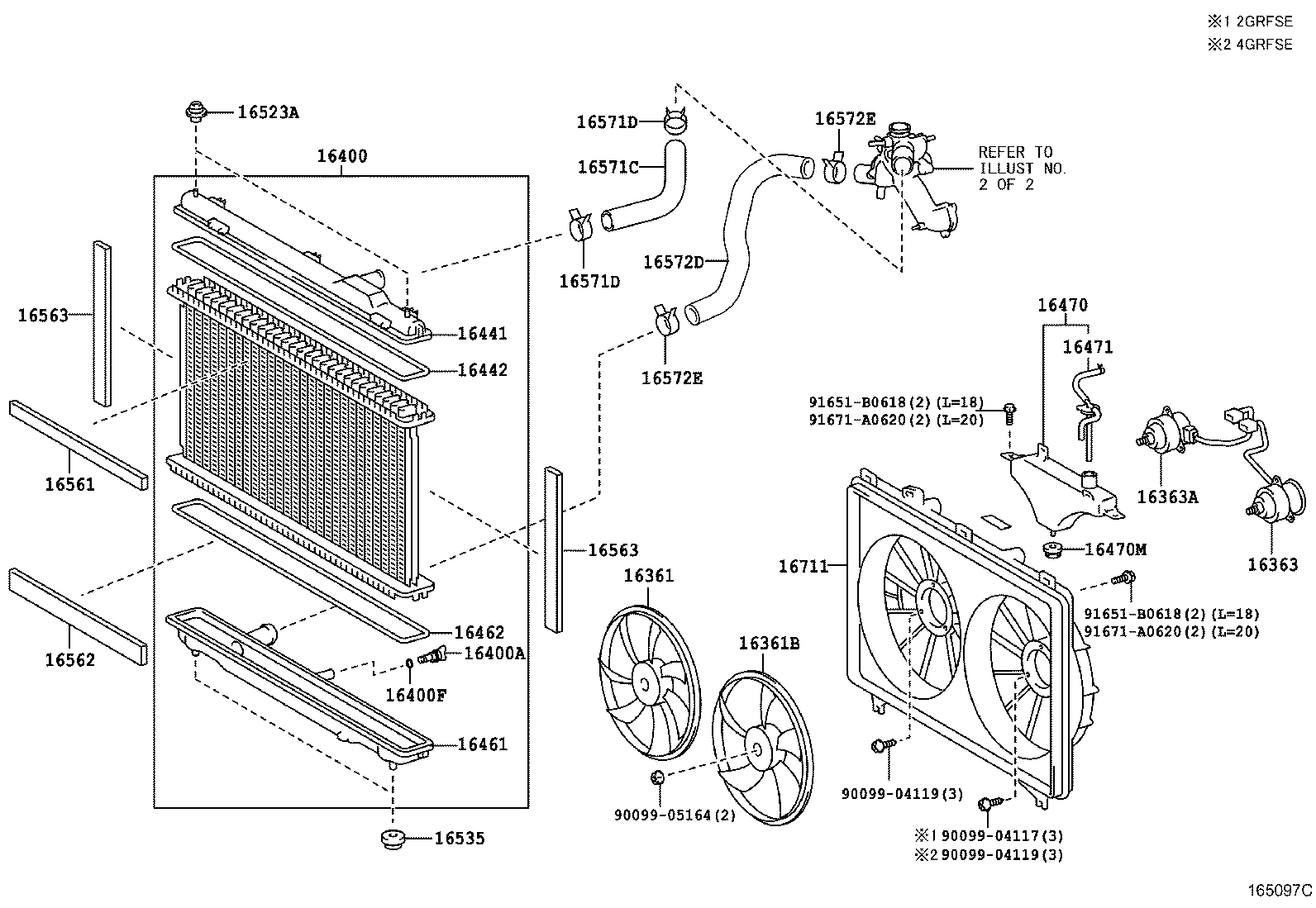

ILLUST NO. 1 OF 2(1112- )2GRFSE,4GRFSE

 GS250 350 450H |  RADIATOR WATER OUTLET 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16400 - RADIATOR ASSY 16400A - COCK SUB-ASSY, RADIATOR DRAIN 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16470M - GROMMET 16471 - CAP SUB-ASSY, RESERVE TANK 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16711 - SHROUD, FAN  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
