LEXUS LFA LFA10L-FCRAFA / BODY / REAR BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR BUMPER BUMPER STAY

(1012- )

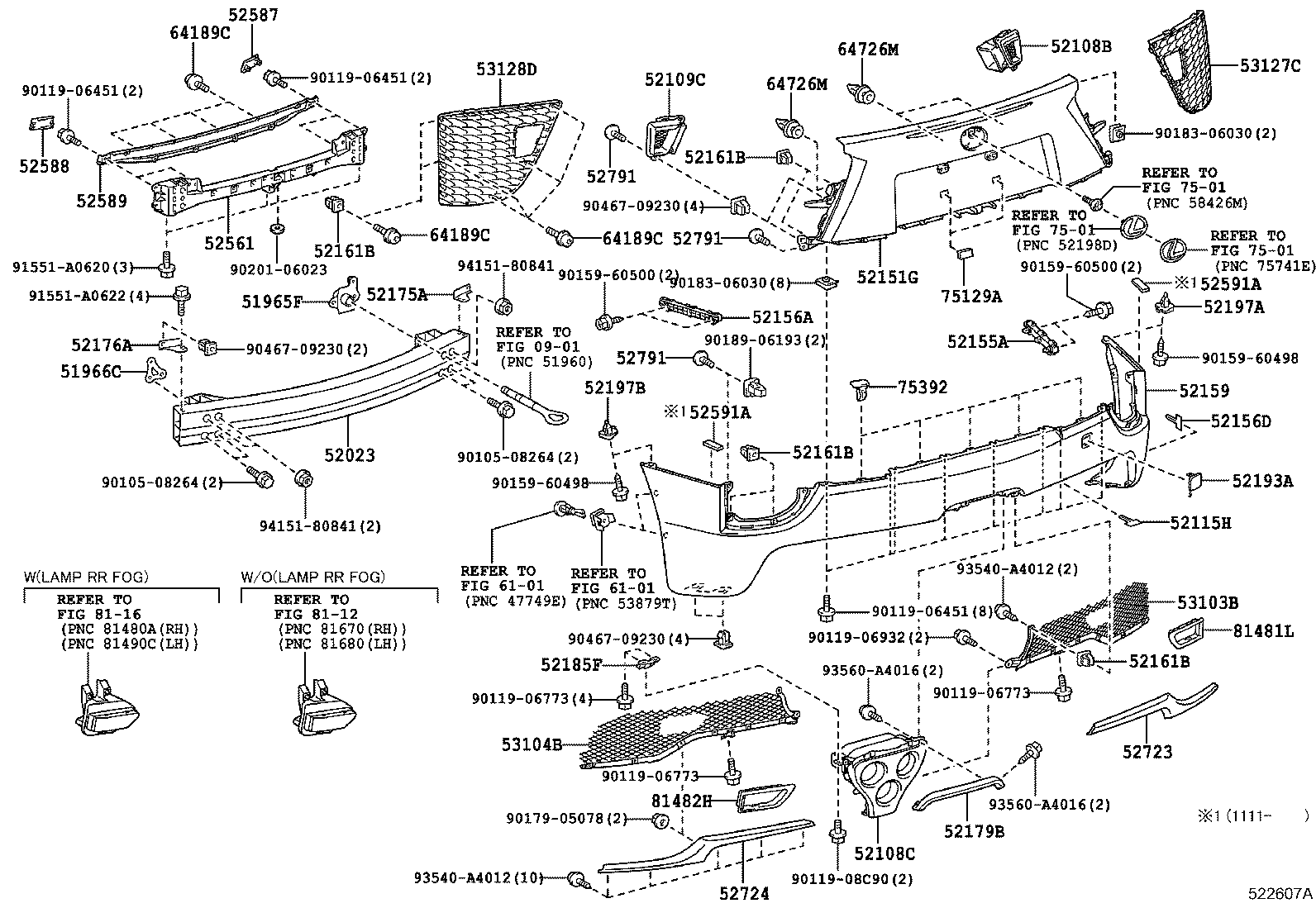

LFA | REAR BUMPER BUMPER STAY ** Refer Fig 51965F - RETAINER, REAR HOOK, RH 51966C - RETAINER, REAR HOOK, LH 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER 52108B - EXTENSION SUB-ASSY, REAR BUMPER SIDE, RH 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER 52109C - EXTENSION SUB-ASSY, REAR BUMPER SIDE, LH 52115H - SUPPORT, REAR BUMPER SIDE 52151G - EXTENSION, REAR BUMPER 52155A - SUPPORT, REAR BUMPER SIDE, RH 52156A - SUPPORT, REAR BUMPER SIDE, LH 52156D - SUPPORT, REAR BUMPER SIDE, LWR 52159 - COVER, REAR BUMPER 52161B - PIECE, REAR BUMPER 52161B - PIECE, REAR BUMPER 52161B - PIECE, REAR BUMPER 52161B - PIECE, REAR BUMPER 52175A - BRACKET, REAR BUMPER ARM MOUNTING, RH 52176A - BRACKET, REAR BUMPER ARM MOUNTING, LH 52179B - PLATE, REAR BUMPER BAR 52185F - BRACKET, REAR BUMPER SIDE MOUNTING 52193A - PLATE, BUMPER MOULDING MOUNTING, RH 52197A - BRACKET, REAR BUMPER SEAL, RH 52197B - BRACKET, REAR BUMPER SEAL, LH 52561 - RETAINER, REAR BUMPER, UPPER CENTER 52587 - RETAINER, REAR BUMPER END, RH 52588 - RETAINER, REAR BUMPER END, LH 52589 - RETAINER, REAR BUMPER END, NO.2 52591A - SEAL, REAR BUMPER 52591A - SEAL, REAR BUMPER 52723 - MOULDING, REAR BUMPER EXTENSION, RH 52724 - MOULDING, REAR BUMPER EXTENSION, LH 52791 - BOLT, BUMPER MOULDING SET, NO.1 52791 - BOLT, BUMPER MOULDING SET, NO.1 52791 - BOLT, BUMPER MOULDING SET, NO.1 53103B - GRILLE SUB-ASSY, RADIATOR, LOWER RH 53104B - GRILLE SUB-ASSY, RADIATOR, LOWER LH 53127C - GRILLE, RADIATOR, LOWER RH 53128D - GRILLE, RADIATOR, LOWER LH ** Refer Fig ** Refer Fig 64189C - BOLT, REAR BODY MOUNTING 64189C - BOLT, REAR BODY MOUNTING 64189C - BOLT, REAR BODY MOUNTING 64726M - CLIP, LUGGAGE TRIM, REAR 64726M - CLIP, LUGGAGE TRIM, REAR ** Refer Fig ** Refer Fig ** Refer Fig 75129A - CUSHION, REAR LICENCE PLATE 75392 - RETAINER, OUTSIDE MOULDING ** Refer Fig ** Refer Fig 81481L - COVER, FOG LAMP, RH 81482H - COVER, FOG LAMP, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
