LEXUS ES250 350 300H AVV60L-BEXGBA / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

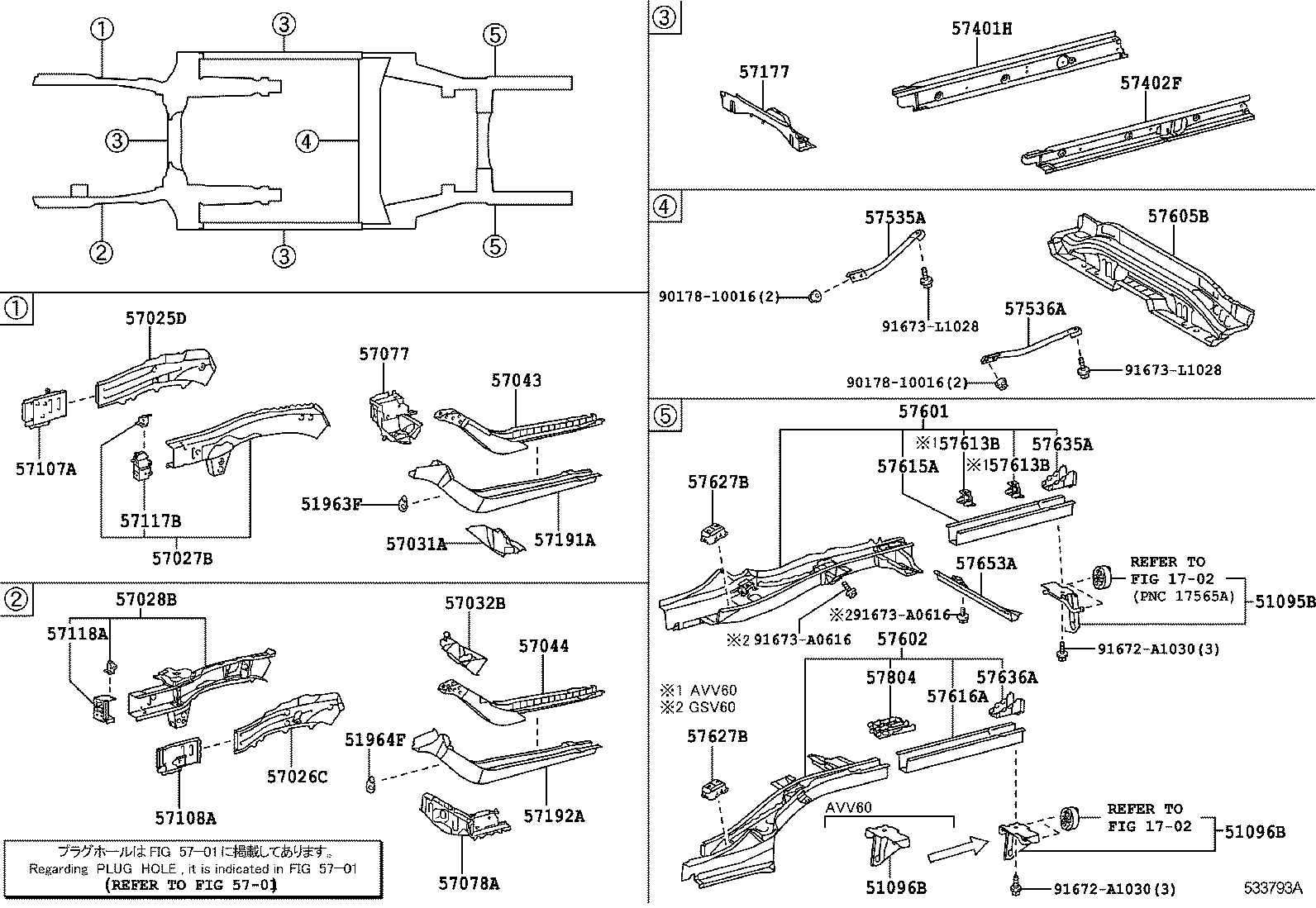

FLOOR SIDE MEMBER

(1206- )

ES250 350 300H | FLOOR SIDE MEMBER ** Refer Fig ** Refer Fig 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH 51963F - HOOK, TRANSPORT 51964F - HOOK, TRANSPORT, LH ** Refer Fig 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57077 - BOX SUB-ASSY, TORQUE, FRONT RH 57078A - BOX SUB-ASSY, TORQUE, FRONT LH 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL 57191A - MEMBER, FRONT SIDE, INNER REAR RH 57192A - MEMBER, FRONT SIDE, INNER REAR LH 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH 57535A - BRACE, FRONT FLOOR, RH 57536A - BRACE, FRONT FLOOR, LH 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57613B - MEMBER, REAR FLOOR SIDE CENTER, RH 57613B - MEMBER, REAR FLOOR SIDE CENTER, RH 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH 57627B - COVER, REAR FLOOR SIDE MEMBER 57627B - COVER, REAR FLOOR SIDE MEMBER 57635A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH 57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH 57653A - MEMBER, REAR FLOOR CROSS, NO.2 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
