LEXUS ES250 350 300H AVV60L-BEXGBA / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

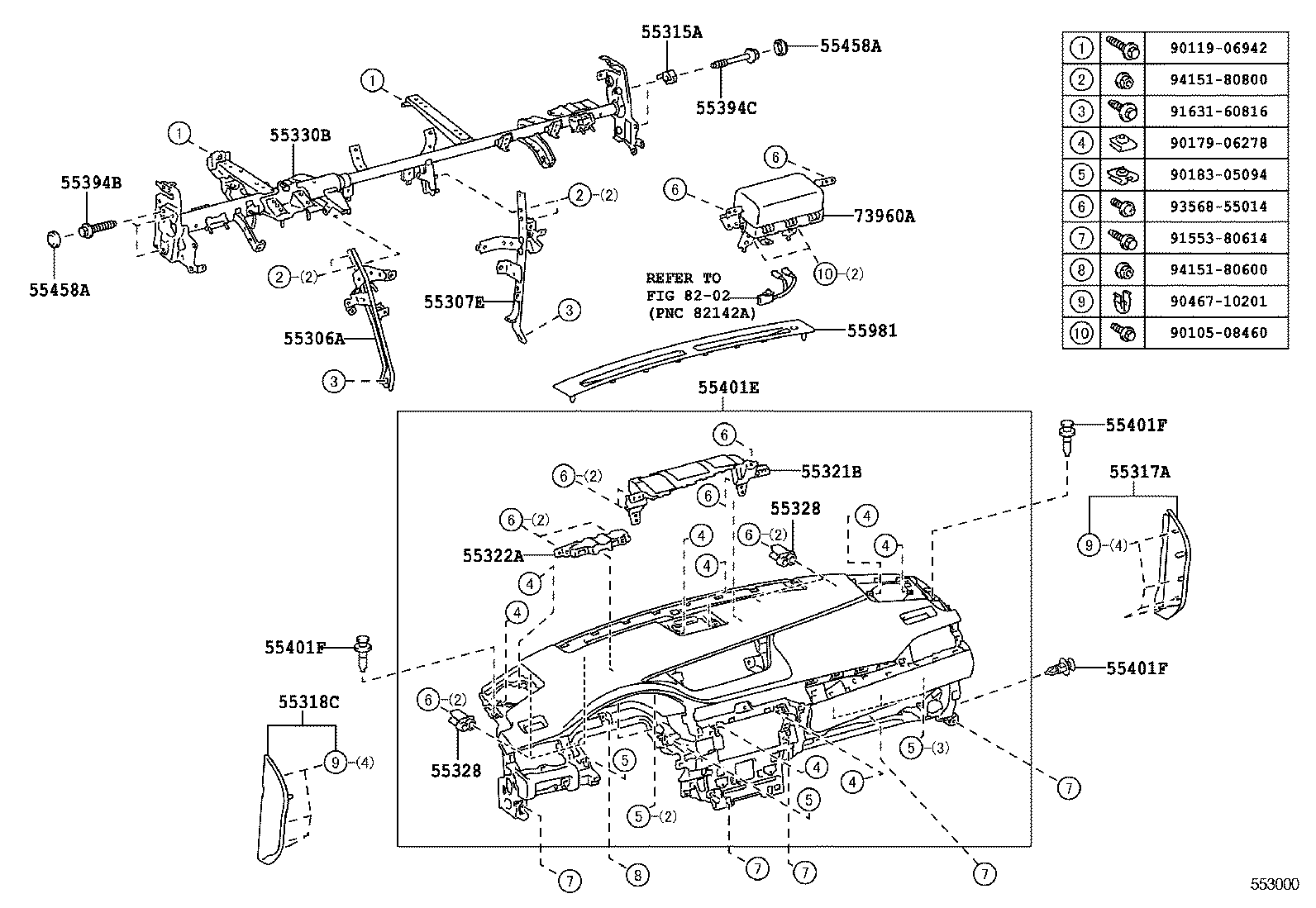

ILLUST NO. 1 OF 2(1206- )

ES250 350 300H | INSTRUMENT PANEL GLOVE COMPARTMENT 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55315A - SPACER, INSTRUMENT PANEL, NO.1 55317A - PANEL, INSTRUMENT SIDE, RH 55318C - PANEL, INSTRUMENT SIDE, LH 55321B - BRACKET, INSTRUMENT PANEL, NO.1 55322A - BRACKET, INSTRUMENT PANEL, NO.2 55328 - PIN, INSTRUMENT PANEL, NO.1 55328 - PIN, INSTRUMENT PANEL, NO.1 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55394B - BOLT, INSTRUMENT PANEL 55394C - BOLT, INSTRUMENT PANEL 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY 55401F - CLIP(FOR SAFETY PAD) 55401F - CLIP(FOR SAFETY PAD) 55401F - CLIP(FOR SAFETY PAD) 55458A - CAP, INSTRUMENT PANEL SAFETY PAD 55458A - CAP, INSTRUMENT PANEL SAFETY PAD 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
