LEXUS ES250 350 300H AVV60L-BEXGBA / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

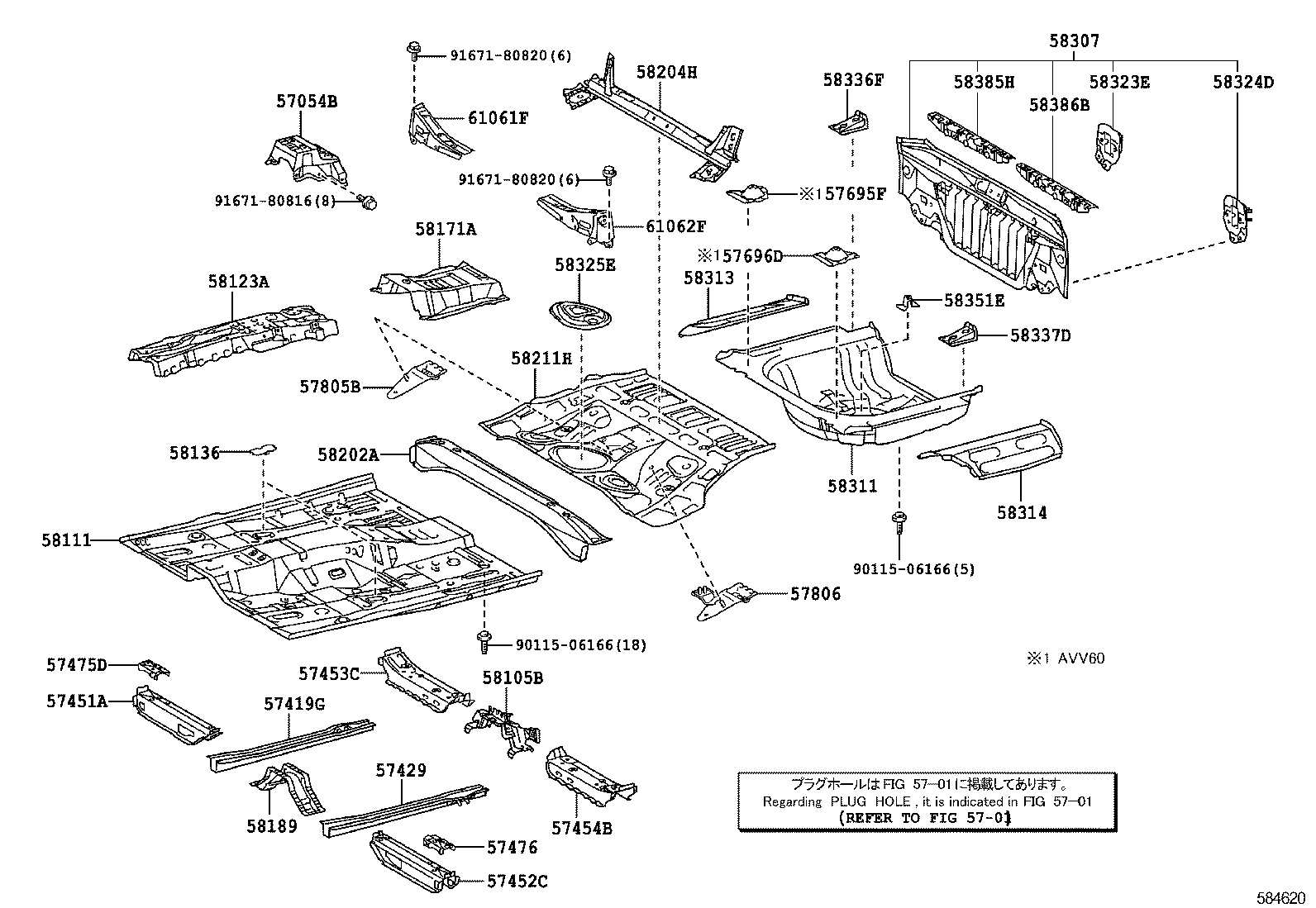

FLOOR PAN & LOWER BACK PANEL ILLUST NO. 1 OF 2(1206- )

ES250 350 300H | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57054B - REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.4 57419G - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH 57429 - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH 57451A - MEMBER, FRONT FLOOR CROSS, RH 57452C - MEMBER, FRONT FLOOR CROSS, LH 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH 57695F - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH 57696D - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136 - COVER, FRONT FLOOR HOLE 58171A - REINFORCE, PARKING BRAKE BASE 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT 58204H - PAN SUB-ASSY, CENTER FLOOR, REAR 58211H - PAN, CENTER FLOOR 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58336F - REINFORCEMENT, REAR FLOOR PAN, RH 58337D - REINFORCEMENT, REAR FLOOR PAN, LH 58351E - BRACKET, SPARE WHEEL CLAMP 58385H - BRACKET, REAR BUMPER COVER, NO.1 58386B - BRACKET, REAR BUMPER COVER, NO.2 61061F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 61062F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
