LEXUS ES250 350 300H AVV60L-BEXGBA / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

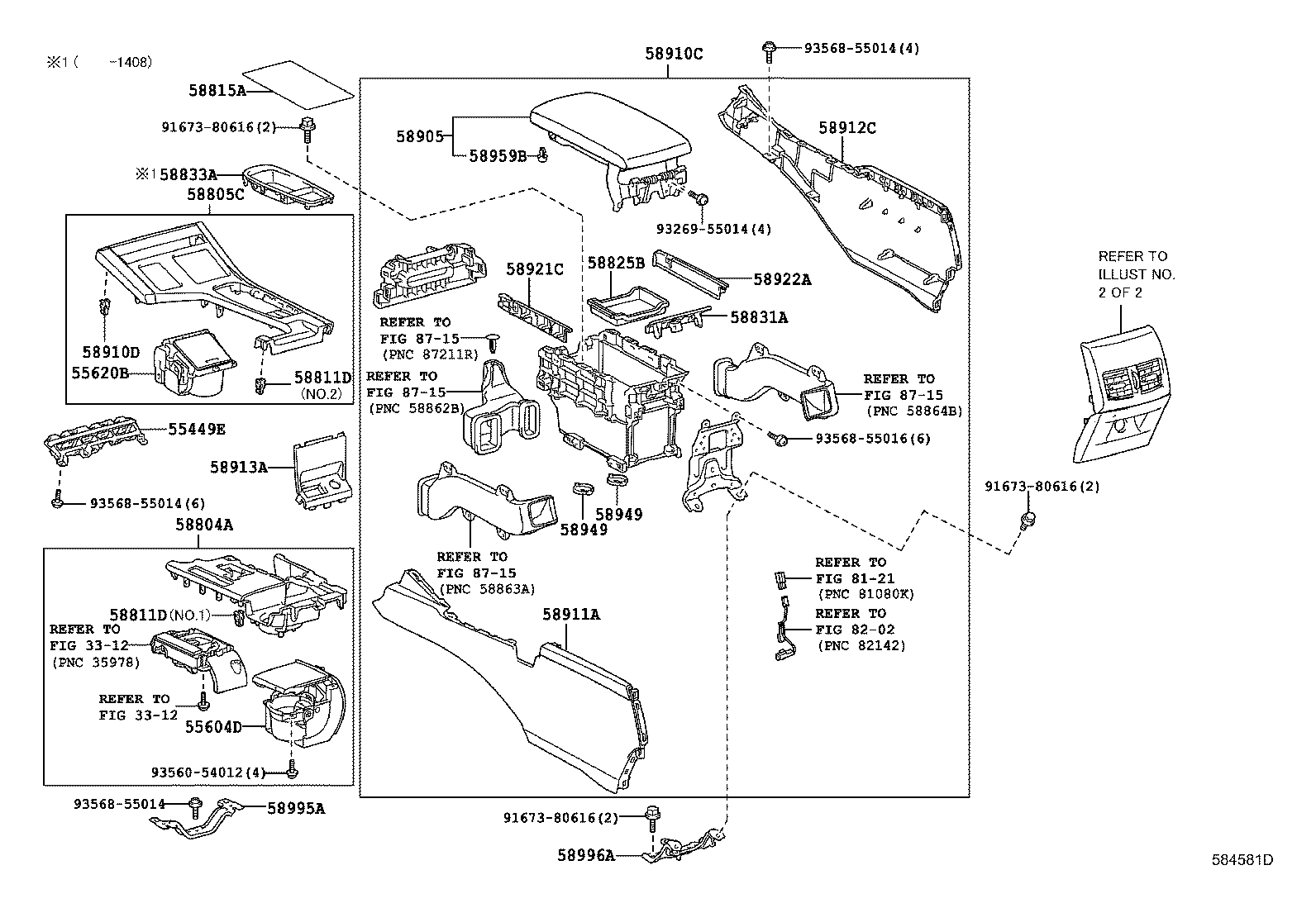

CONSOLE BOX BRACKET

ILLUST NO. 1 OF 2(1206- )

ES250 350 300H | CONSOLE BOX BRACKET ** Refer Fig ** Refer Fig 55449E - BASE, SWITCH 55604D - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP 55620B - HOLDER, INSTRUMENT PANEL CUP 58804A - PANEL SUB-ASSY, CONSOLE, UPPER 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR 58811D - CLIP(FOR CONSOLE BOX) 58811D - CLIP(FOR CONSOLE BOX) 58815A - CARPET, CONSOLE BOX 58825B - POCKET, CONSOLE BOX 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT 58833A - COVER, CONSOLE, UPPER 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58910C - BOX ASSY, CONSOLE, REAR 58910D - CLIP(FOR CONSOLE BOX) 58911A - PANEL, BOX SIDE, NO.1 58912C - PANEL, BOX SIDE, NO.2 58913A - PANEL, BOX, NO.3 58921C - PLATE, BOX, UPR NO.1 58922A - PLATE, BOX, UPPER NO.2 58949 - PLATE, CONSOLE BOX 58949 - PLATE, CONSOLE BOX 58959B - CUSHION, CONSOLE COMPARTMENT DOOR 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
