LEXUS ES250 350 300H AVV60L-BEXGBA / TOOL-ENGINE-FUEL / TIMING GEAR COVER REAR END PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TIMING GEAR COVER REAR END PLATE

(1206- )2ARFXE

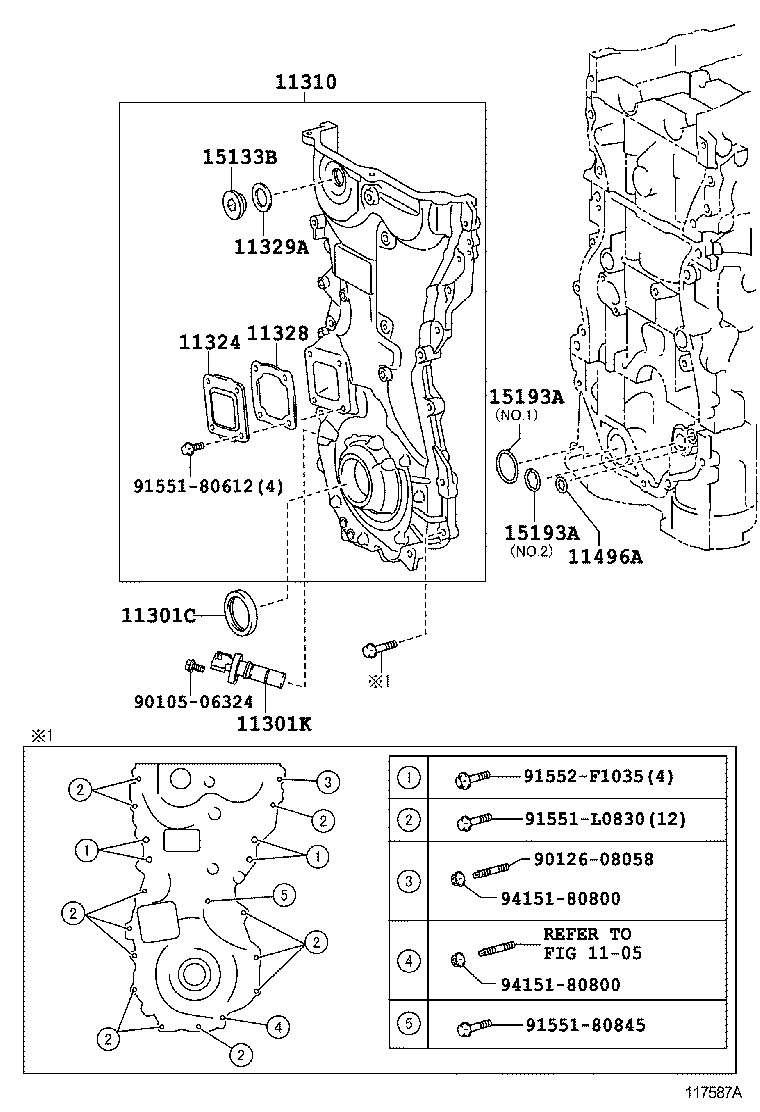

 ES250 350 300H |  TIMING GEAR COVER REAR END PLATE ** Refer Fig 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) 11301K - SENSOR, CRANK POSITION 11310 - COVER ASSY, TIMING CHAIN 11324 - PLATE, TIMING CHAIN COVER 11328 - GASKET, TIMING GEAR OR CHAIN COVER 11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2 11496A - GASKET, OIL HOLE COVER 15133B - PLUG, OIL PUMP RELIEF VALVE 15193A - GASKET, OIL PUMP 15193A - GASKET, OIL PUMP  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
