LEXUS GS250 350 450H GWL10L-BEXQBA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

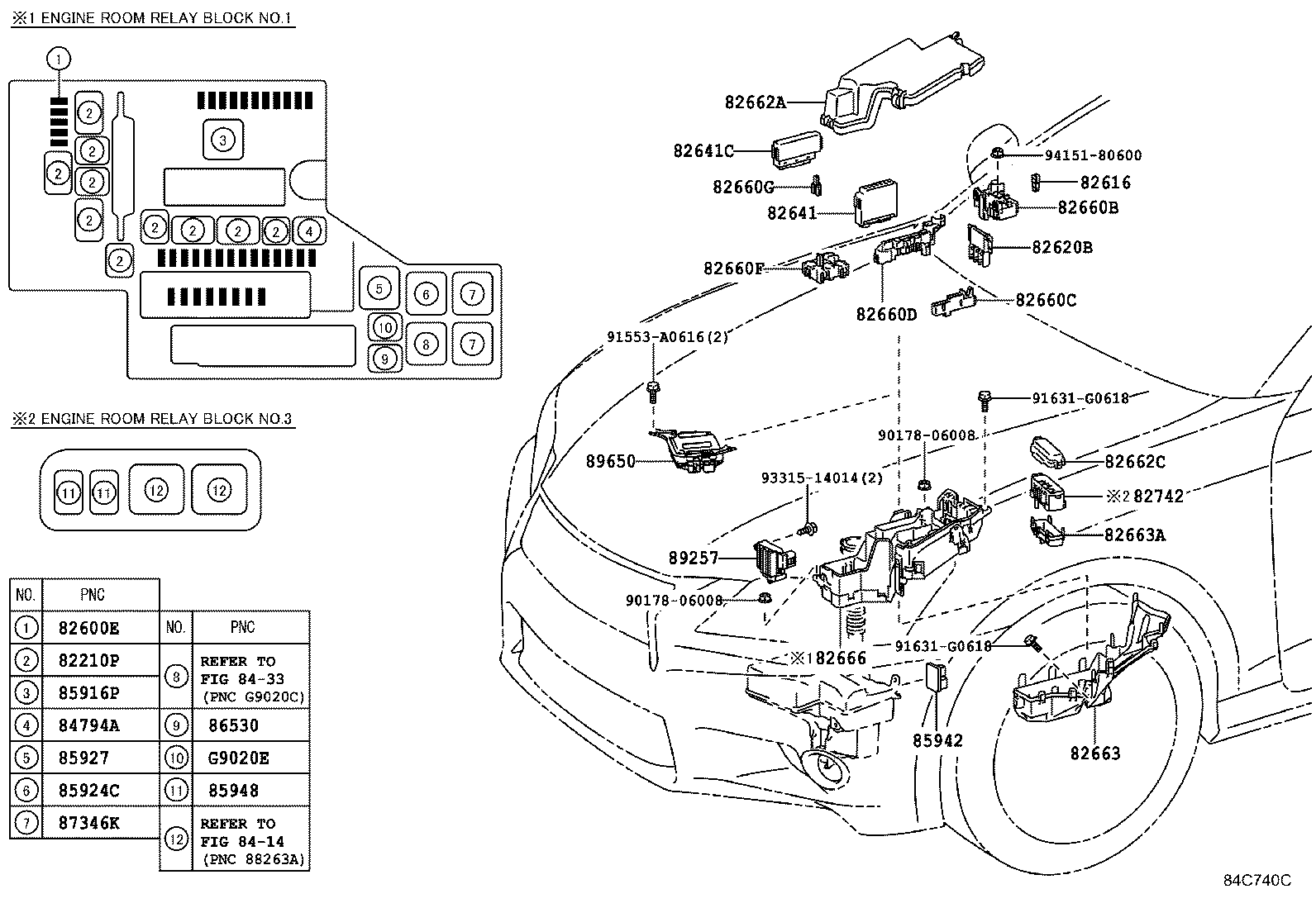

SWITCH RELAY COMPUTER

ENGINE ROOM ILLUST NO. 2 OF 9(1203- )GWL10

GS250 350 450H | SWITCH RELAY COMPUTER 82210P - ENGINE ROOM FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82616 - PULLER, FUSE 82620B - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82641C - RELAY, INTEGRATION NO.2 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82660F - BLOCK ASSY, RELAY 82660G - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82666 - HOLDER, CONNECTOR 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 ** Refer Fig ** Refer Fig 84794A - RELAY, FR WIPER DEICER 85916P - RELAY, HEADLAMP 85924C - RELAY, IGCT 85927 - RELAY, COOLING FAN 85942 - RELAY, HEADLAMP CLEANER CONTROL 85948 - RELAY, WINDSHIELD WIPER 86530 - RELAY ASSY, HORN 87346K - RELAY, PTC HEATER 89257 - COMPUTER, COOLING FAN 89650 - COMPUTER ASSY, POWER STEERING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9020E - RELAY, HYBRID WATER PUMP
