LEXUS GS250 350 450H GWL10L-BEXQBA / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

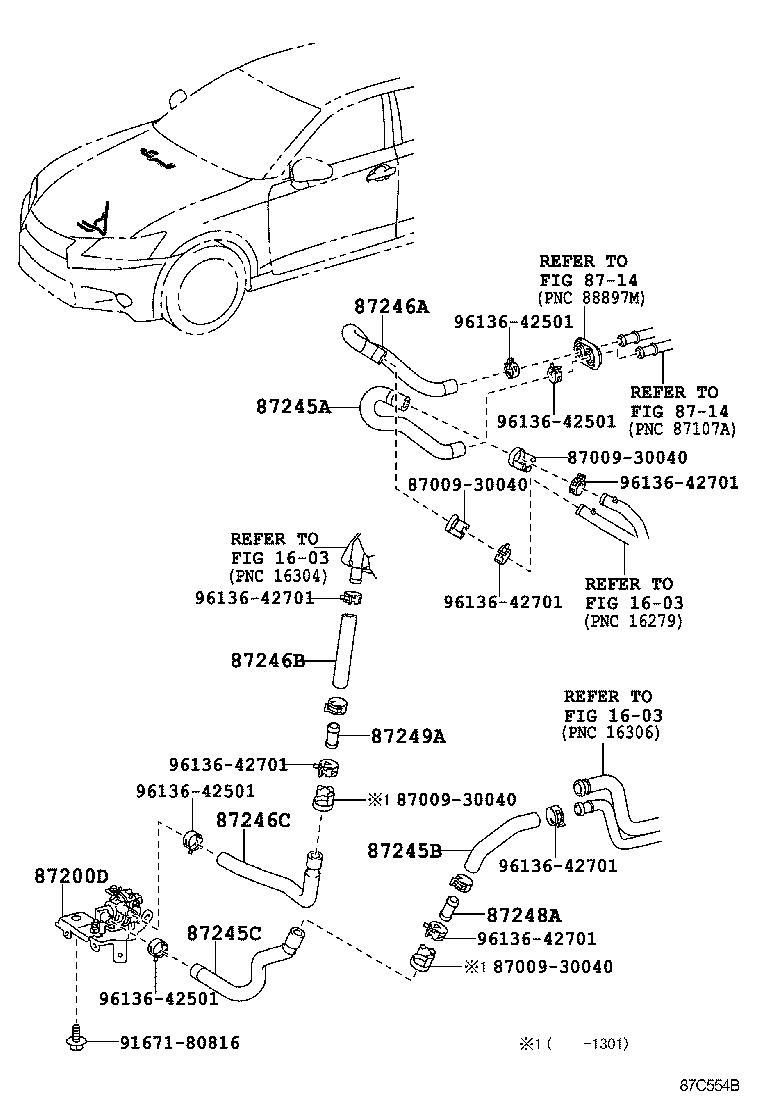

HEATING AIR CONDITIONING WATER PIPING

(1203- )GWL10

GS250 350 450H | HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Refer Fig ** Refer Fig 87200D - ACCESSORY ASSY, HEATER 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245C - HOSE, HEATER WATER ,INLET C 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87246C - HOSE, HEATER WATER, OUTLET C 87248A - PIPE, HEATER WATER INLET, A 87249A - PIPE, HEATER WATER OUTLET, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
