LEXUS GX460 URJ150L-GKTGKA / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

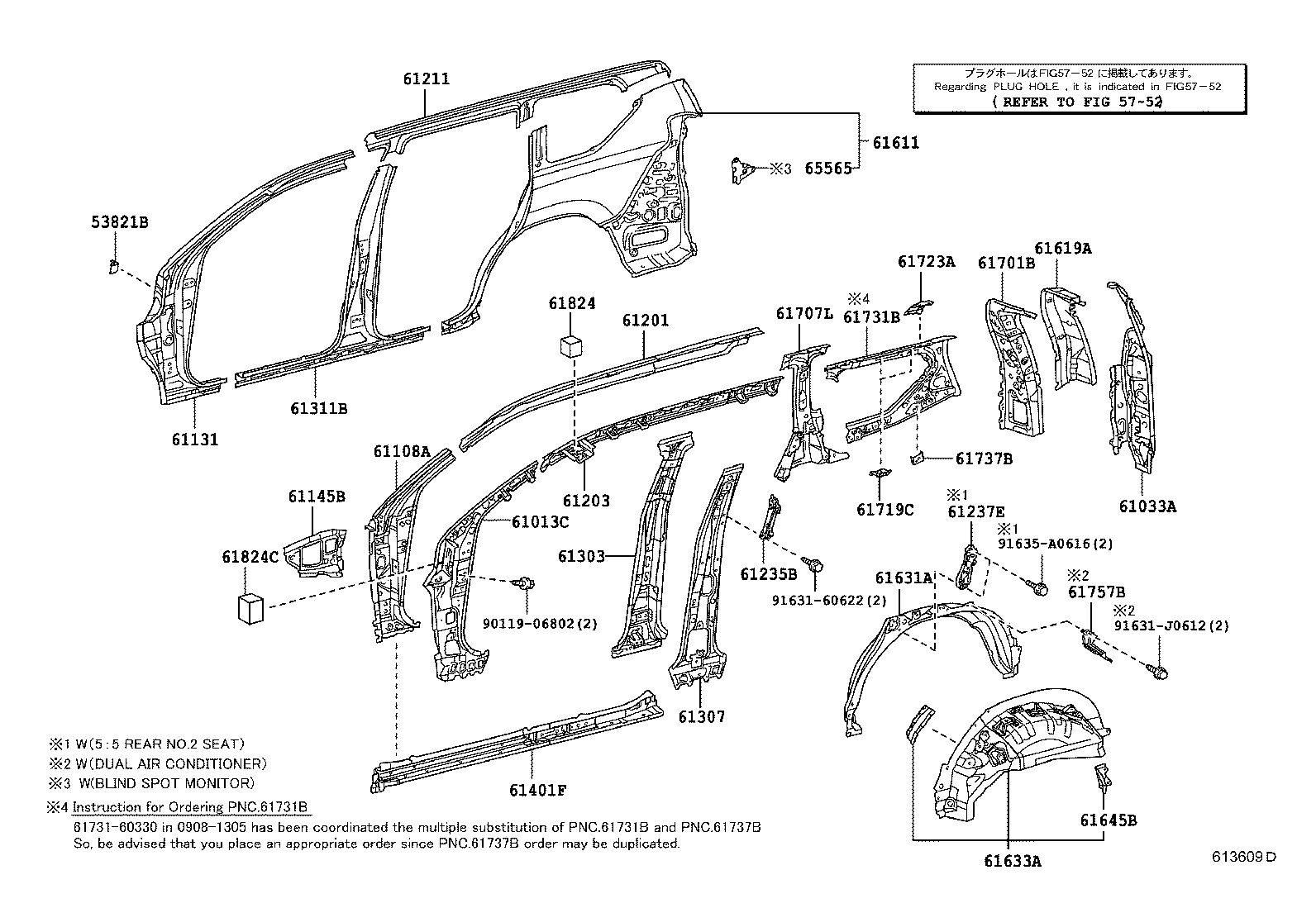

SIDE MEMBER

RH ILLUST NO. 1 OF 2(0911- )

GX460 | SIDE MEMBER 53821B - BRACKET, FRONT FENDER, REAR RH ** Refer Fig 61013C - PANEL SUB-ASSY, SIDE, INNER RH 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61131 - PILLAR, FRONT BODY, UPPER OUTER RH 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH 61201 - RAIL SUB-ASSY, ROOF SIDE, RH 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH 61211 - RAIL, ROOF SIDE, OUTER RH 61235B - BRACKET, ASSIST GRIP 61237E - BRACKET, ASSIST GRIP, NO.1 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH 61311B - PILLAR, CENTER BODY, OUTER RH 61401F - REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH 61611 - PANEL, QUARTER, RH 61619A - REINFORCEMENT, QUARTER PANEL 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH 61701B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH 61707L - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH 61719C - BRACKET, ROOF SIDE RAIL, RH 61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 61731B - PANEL, ROOF SIDE, INNER RH 61737B - PANEL, ROOF SIDE, INNER LOWER RH 61757B - RETAINER, DECK SIDE TRIM, LOWER 61824 - PLATE, NOISE CONTROL, NO.1 61824C - PAD, NOISE SHUTTER, NO.1 65565 - PATCH, SIDE PANEL REAR END, RH ** Std Part ** Std Part ** Std Part ** Std Part
