LEXUS IS250 350 GSE36L-AETLHA / POWERTRAIN-CHASSIS / FRONT AXLE HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT AXLE HUB

(1304- )GSE35,36

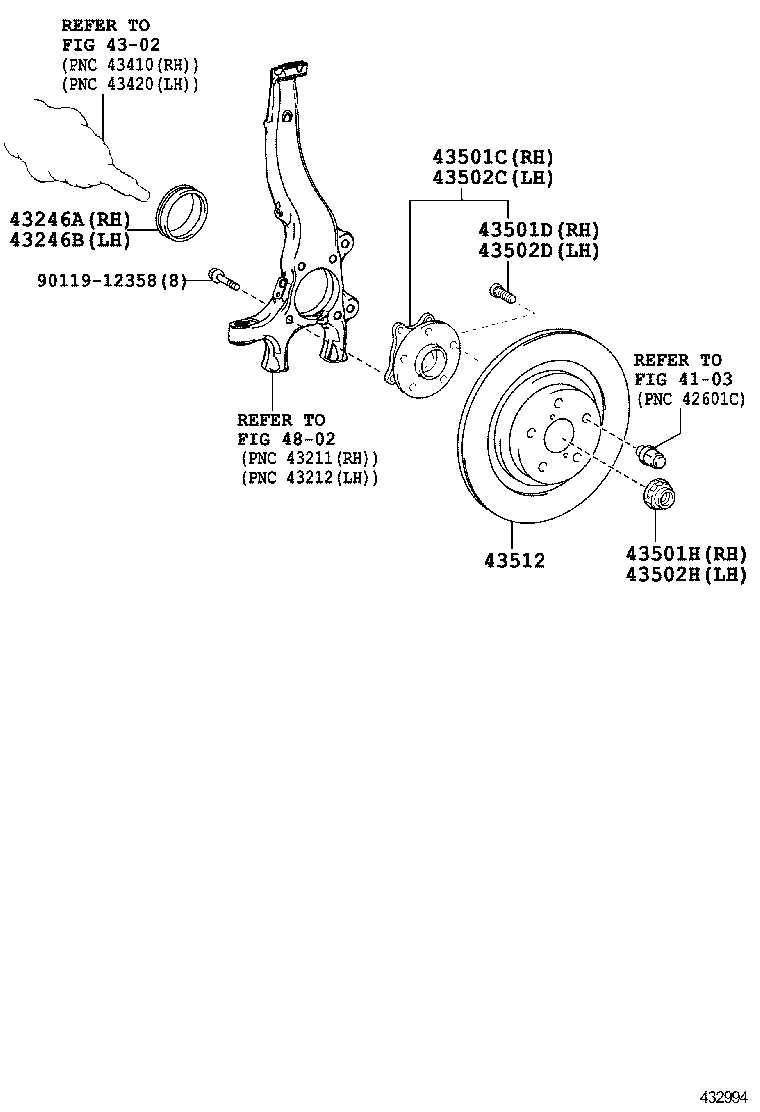

IS250 350 | FRONT AXLE HUB ** Refer Fig ** Refer Fig 43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH 43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH 43501C - HUB SUB-ASSY, FRONT AXLE, RH 43501D - BOLT, HUB (FOR FRONT AXLE RH) 43501H - NUT (FOR FRONT AXLE SHAFT RH) 43502C - HUB SUB-ASSY, FRONT AXLE, LH 43502D - BOLT, HUB (FOR FRONT AXLE LH) 43502H - NUT (FOR FRONT AXLE SHAFT LH) 43512 - DISC, FRONT ** Refer Fig ** Std Part
