LEXUS IS250 350 GSE36L-AETLHA / POWERTRAIN-CHASSIS / FRONT AXLE ARM STEERING KNUCKLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT AXLE ARM STEERING KNUCKLE

(1304- )GSE35,36

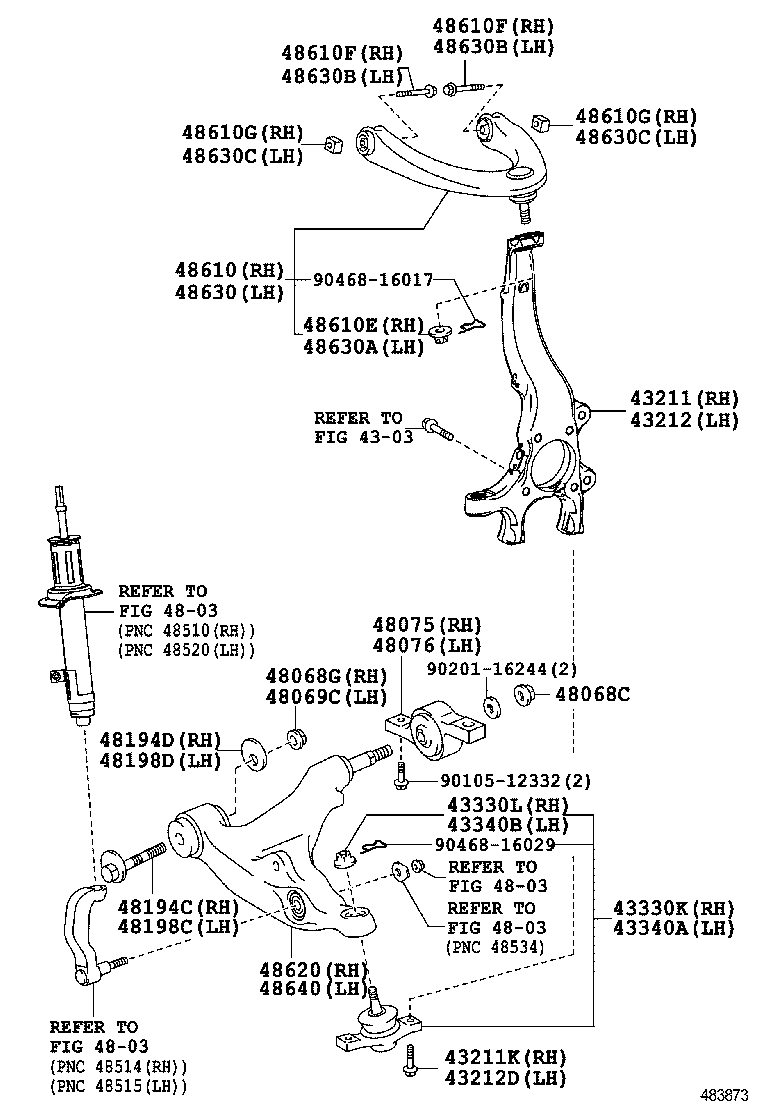

 IS250 350 |  FRONT AXLE ARM STEERING KNUCKLE ** Refer Fig 43211 - KNUCKLE, STEERING, RH 43211K - BOLT (FOR STEERING KNUCKLE RH) 43212 - KNUCKLE, STEERING, LH 43212D - BOLT (FOR STEERING KNUCKLE LH) 43330K - JOINT ASSY, LOWER BALL, FRONT RH 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) 43340A - JOINT ASSY, LOWER BALL, FRONT LH 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) 48075 - BRACKET SUB-ASSY, LWR ARM, NO,1 48076 - BRACKET SUB-ASSY, LWR ARM, NO.2 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) 48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) 48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part
