LEXUS IS250 350 GSE36L-AETLHA / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SPRING SHOCK ABSORBER

(1304- )GSE35,36

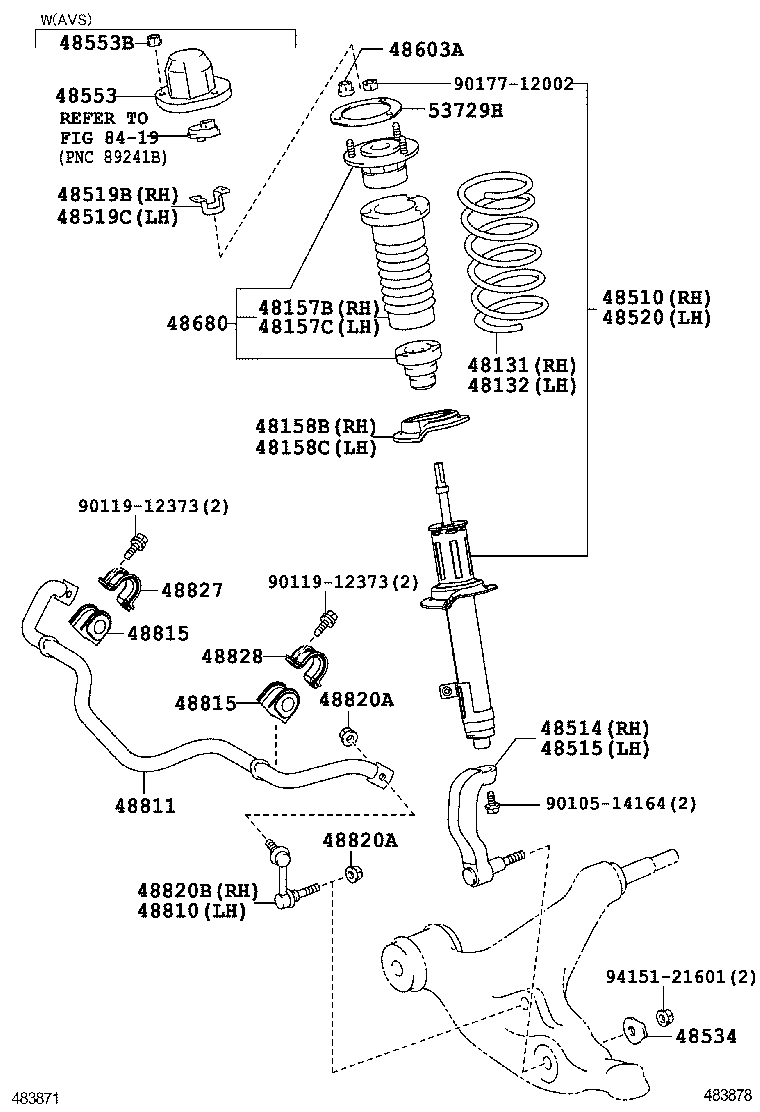

IS250 350 | FRONT SPRING SHOCK ABSORBER 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH 48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH 48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48534 - PLATE, FRONT SHOCK ABSORBER UPPER BRACKET 48553 - CAP, SHOCK ABSORBER, UPPER 48553B - NUT(FOR FRONT SHOCK ABSORBER CAP) 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) 48680 - SUPPORT ASSY, FRONT SUSPENSION 48810 - LINK ASSY, FRONT STABILIZER, LH 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820A - NUT(FOR FRONT STABILIZER LINK) 48820A - NUT(FOR FRONT STABILIZER LINK) 48820B - LINK ASSY, FRONT STABILIZER, RH 48827 - BRACKET, FRONT STABILIZER, NO.2 RH 48828 - BRACKET, FRONT STABILIZER, NO.2 LH 53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
