LEXUS RX350 450H GYL10L-AWXGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

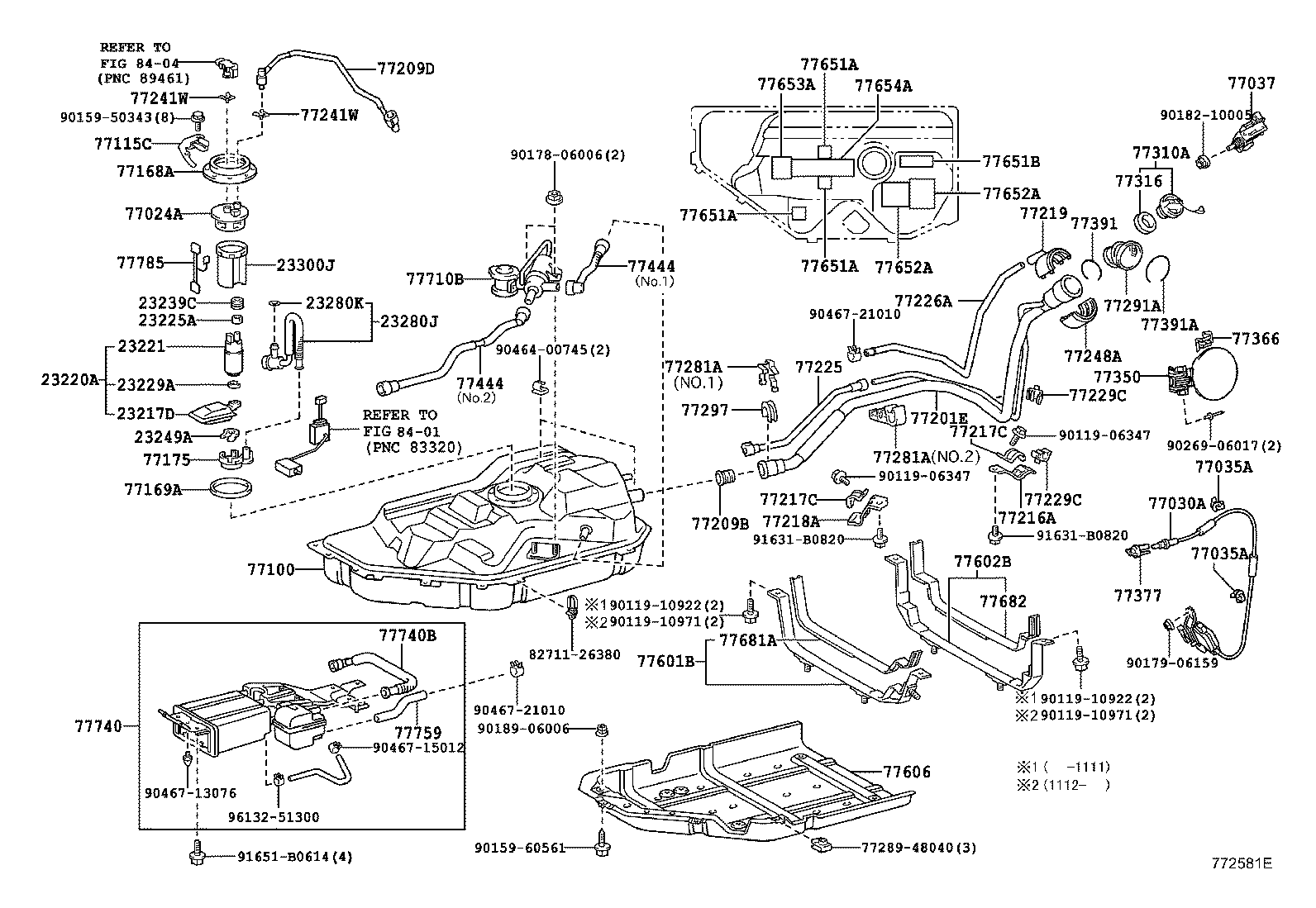

FUEL TANK ILLUST NO. 1 OF 2(0903- )GYL1#

RX350 450H | FUEL TANK TUBE 23217D - FILTER, FUEL PUMP 23220A - PUMP ASSY, FUEL W/FILTER 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23229A - CLIP(FOR FUEL PUMP FILTER) 23239C - SEAL, FUEL PUMP FILTER 23249A - RUBBER, CUSHION(FOR FUEL PUMP) 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23300J - FILTER ASSY, FUEL 77024A - PLATE SUB-ASSY, FUEL SUCTION 77030A - LOCK ASSY, FUEL LID W/MOTOR 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77115C - PLATE, FUEL TANK SIDE, NO.3 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77175 - SUPPORT, FUEL SUCTION, NO.2 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209B - TUBE SUB-ASSY, FUEL PUMP 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77219 - COVER, FUEL TANK FILLER PIPE 77225 - TUBE, BREATHER LOWER 77226A - TUBE, FUEL TANK BREATHER, NO.6 77229C - CLAMP, BREATHER TUBE 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77248A - HOLDER, FUEL TANK FILLER PIPE COVER 77281A - CLAMP, FUEL FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE ** Std Part 77291A - SHIELD, FUEL TANK FILLER PIPE 77297 - CONNECTOR, FUEL TUBE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77444 - HOSE, FUEL TANK VENT 77444 - HOSE, FUEL TANK VENT 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77654A - CUSHION, FUEL TANK, NO.4 77681A - SEAT, FUEL TANK BAND 77682 - SEAT, FUEL TANK BAND, LH 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN 77740 - CANISTER ASSY, CHARCOAL 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77759 - HOSE, CHARCOAL CANISTER 77785 - HARNESS, FUEL PUMP ** Std Part ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
