LEXUS RX350 450H GYL10L-AWXGKA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

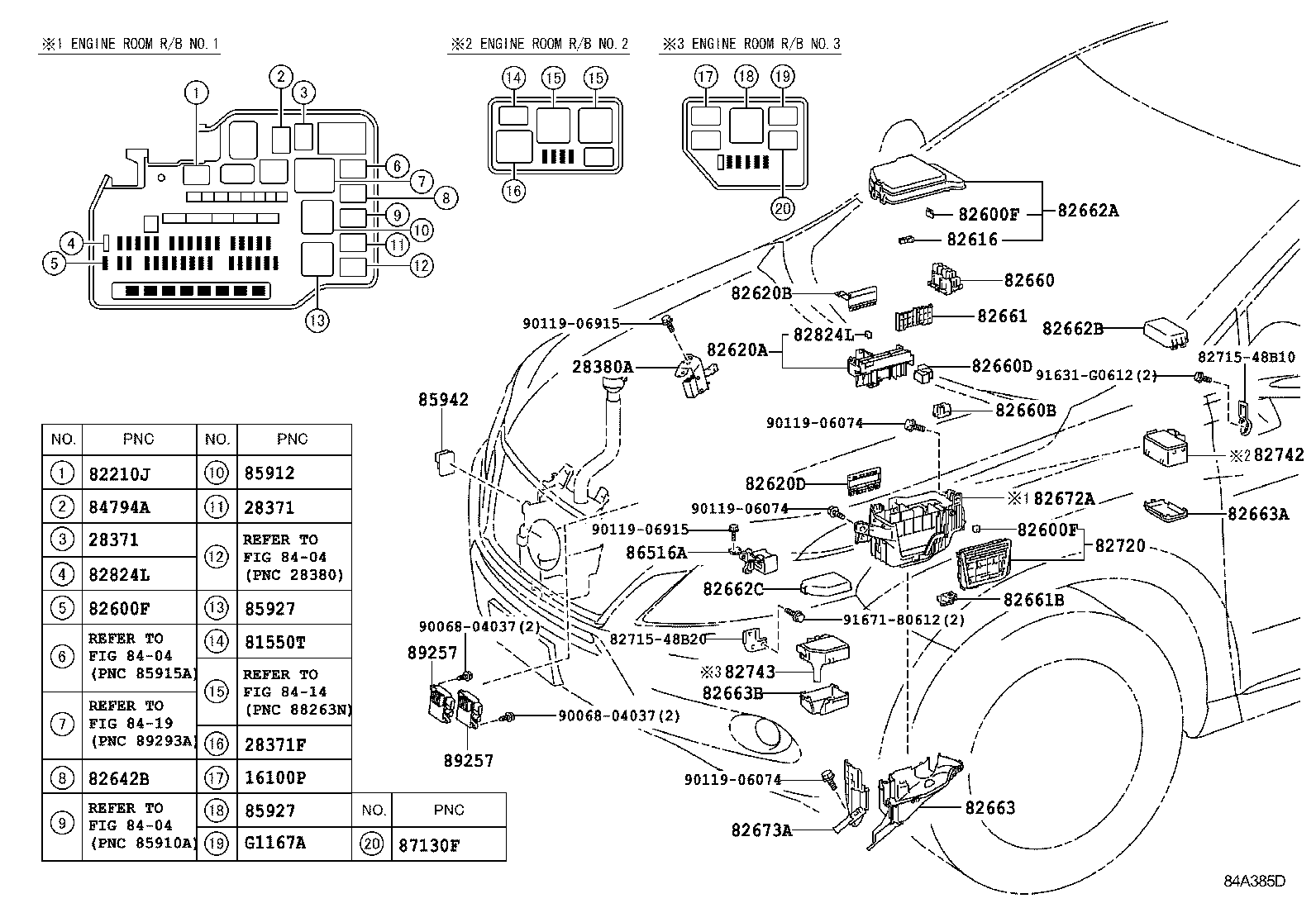

ENGINE ROOM ILLUST NO. 2 OF 7(0903- )GYL1#

RX350 450H | SWITCH RELAY COMPUTER 16100P - RELAY, WATER PUMP 28371 - RELAY, IGNITION, NO.1 28371 - RELAY, IGNITION, NO.1 28371F - RELAY, IGNITION, NO.5 28380A - RESISTER, FUEL PUMP 81550T - RELAY, BACK UP LAMP 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82620D - BLOCK ASSY, FUSIBLE LINK 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82660B - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82661B - COVER, RELAY BLOCK, NO.3 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82672A - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK ** Std Part ** Std Part 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 82824L - PIN, SHORT 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 84794A - RELAY, FR WIPER DEICER 85912 - RELAY, DEFOGGER 85927 - RELAY, COOLING FAN 85927 - RELAY, COOLING FAN 85942 - RELAY, HEADLAMP CLEANER CONTROL 86516A - CONDENSER 87130F - RELAY, BATTERY BLOWER, NO.1 89257 - COMPUTER, COOLING FAN 89257 - COMPUTER, COOLING FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G1167A - RELAY (FOR OIL PUMP MOTOR)
