LEXUS CT200H ZWA10L-AHXBBA / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

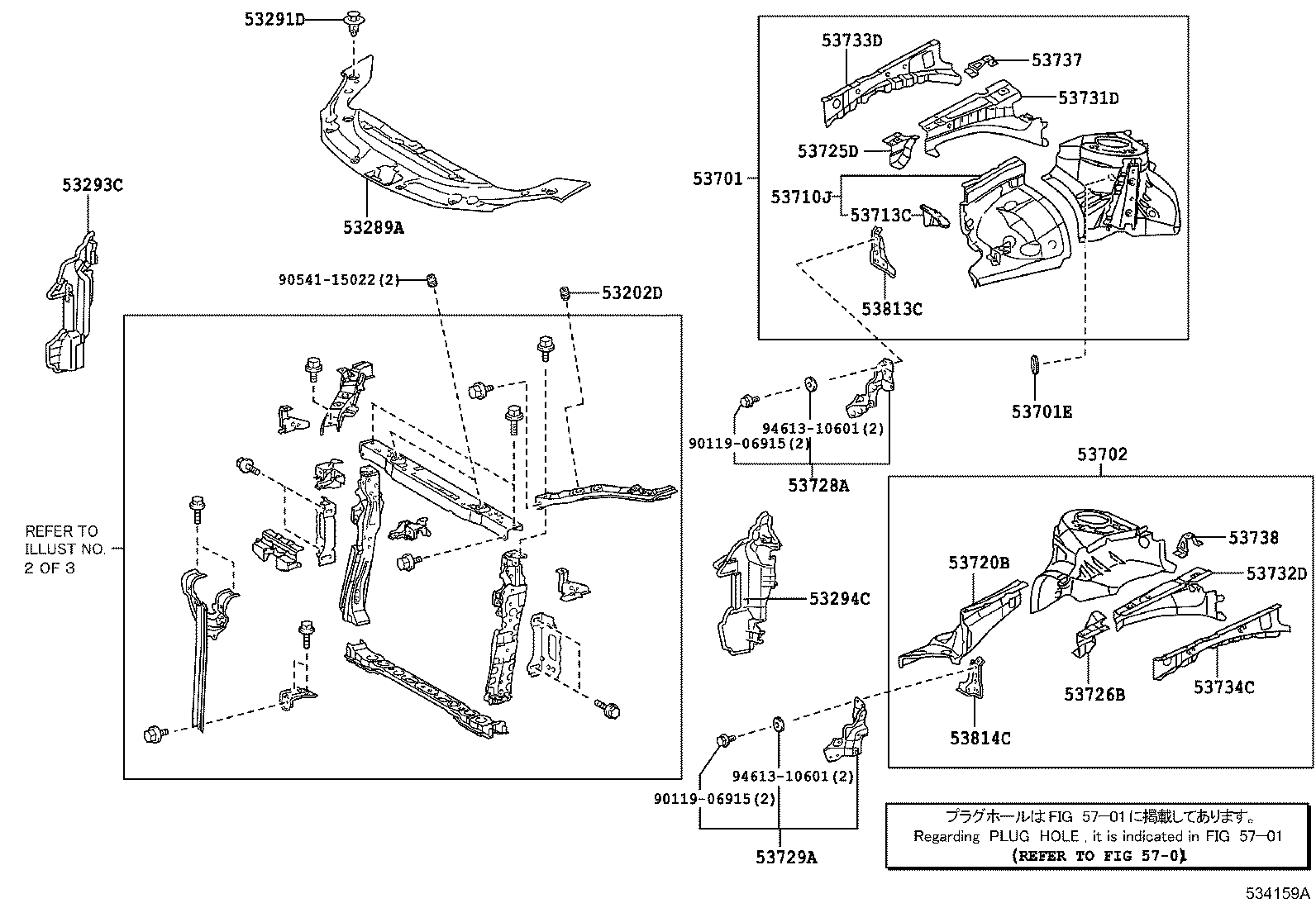

RADIATOR SUPPORT,FRONT FENDER APRONILLUST NO. 1 OF 3(1309- )

CT200H | FRONT FENDER APRON DASH PANEL 53202D - CUSHION, RADIATOR SUPPORT 53289A - COVER, RADIATOR SUPPORT OPENING 53291D - CLIP, RADIATOR SUPPORT TO FRAME 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53701E - GROMMET(FOR FRONT FENDER APRON) 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53710J - APRON ASSY, FRONT FENDER, RH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53720B - APRON ASSY, FRONT FENDER, LH 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH 53728A - BRACKET, FENDER APRON, RH 53729A - BRACKET, FENDER APRON, LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH 53813C - EXTENSION, FRONT FENDER, RH 53814C - EXTENSION, FRONT FENDER, LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
