LEXUS IS250C 350C GSE21L-AKTLHA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

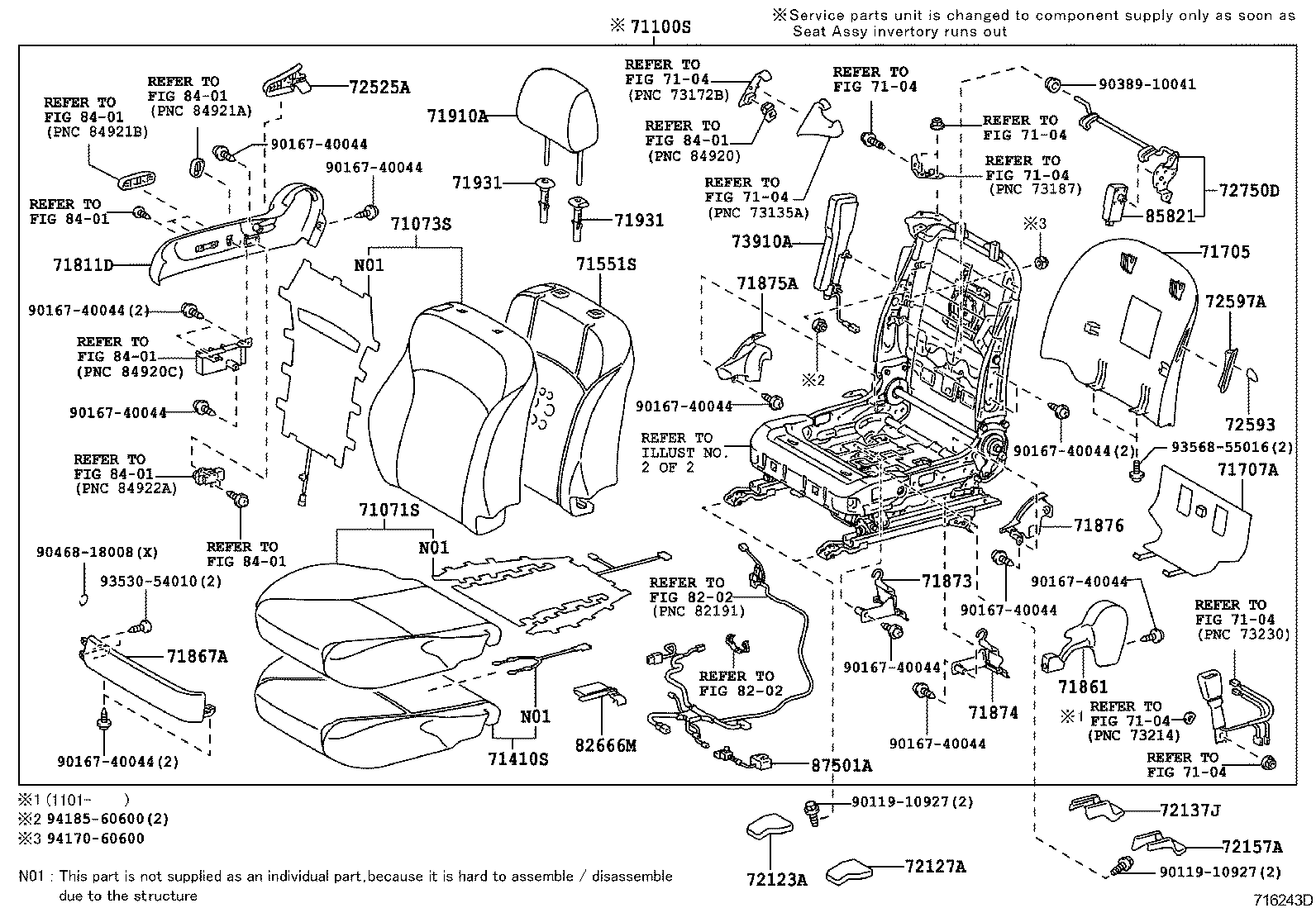

FRONT SEAT SEAT TRACK

RH SEAT,KOREA SPEC ILLUST NO. 1 OF 2(0904- )

IS250C 350C | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71100S - SEAT ASSY, FRONT RH 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD 71811D - SHIELD, FRONT SEAT CUSHION, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72593 - KNOB, RECLINING REMOTE CONTROL LEVER 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 73910A - AIR BAG ASSY, FRONT SEAT, RH ** Refer Fig ** Refer Fig 82666M - HOLDER, CONECTOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85821 - MOTOR ASSY, POWER SEAT 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
