TOYOTA CARINA TA10L-K / TOOL-ENGINE-FUEL / FUEL PUMP PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

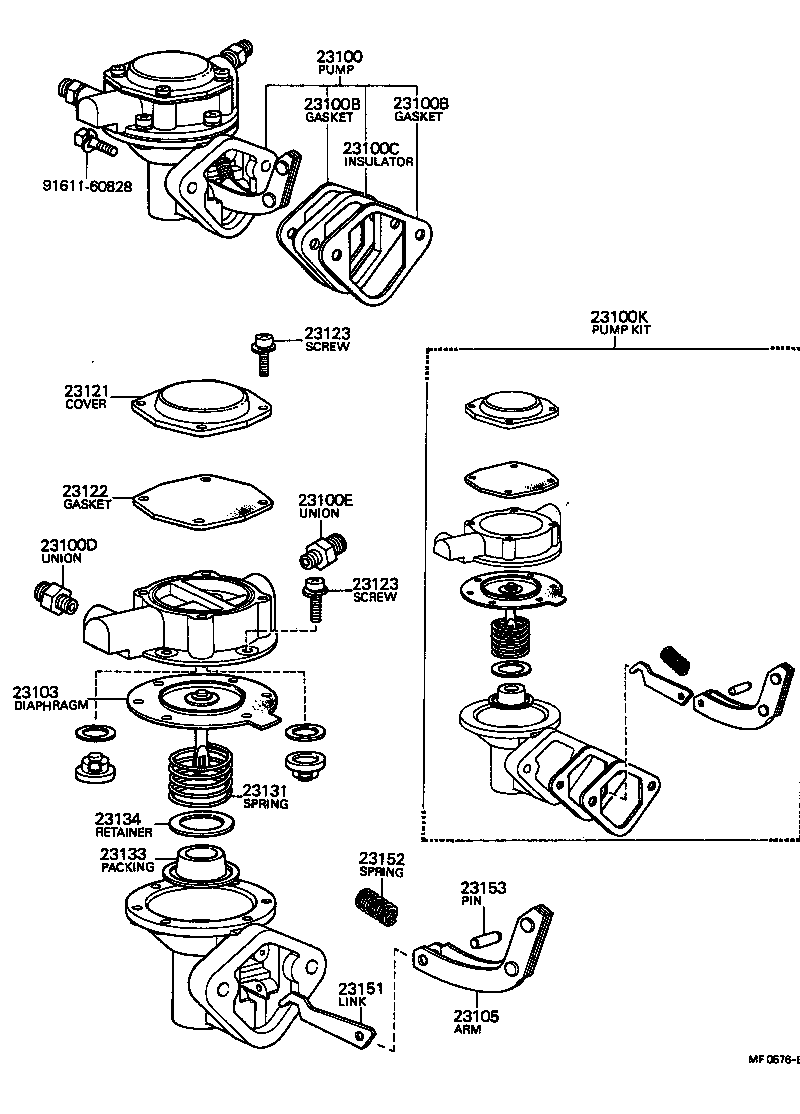

FUEL PUMP PIPE

(7012-7204)

 CARINA |  FUEL PUMP PIPE 23100 - PUMP ASSY, FUEL 23100B - GASKET, FUEL PUMP 23100B - GASKET, FUEL PUMP 23100C - INSULATOR, FUEL PUMP 23100D - UNION, NIPPLE(FOR FUEL OUTLET) 23100E - UNION, NIPPLE(FOR FUEL INLET) 23100K - PUMP KIT, FUEL 23103 - DIAPHRAGM SUB-ASSY 23105 - ARM SUB-ASSY, ROCKER 23121 - COVER, FUEL PUMP 23122 - GASKET, FUEL PUMP COVER 23123 - SCREW, COVER SET, NO.1 23123 - SCREW, COVER SET, NO.1 23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP) 23133 - PACKING, OIL SEAL(FOR FUEL PUMP) 23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP) 23151 - LINK, ROCKER ARM 23152 - SPRING, ROCKER ARM 23153 - PIN, ROCKER ARM  ** Std Part
