TOYOTA LAND CRUISER 40 45 55 FJ55V-B / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

(6903-8007)FJ55

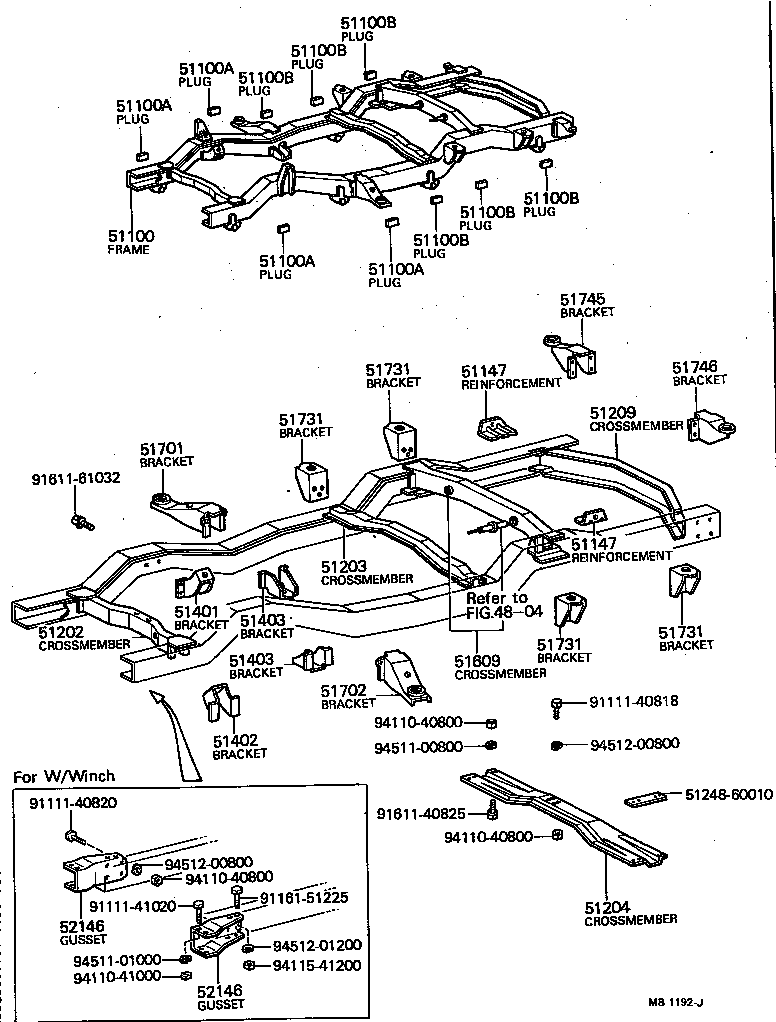

 LAND CRUISER 40 45 55 |  FRAME ** Refer Fig 51100 - FRAME ASSY 51100A - PLUG, HOLE(FOR FRAME) 51100A - PLUG, HOLE(FOR FRAME) 51100A - PLUG, HOLE(FOR FRAME) 51100A - PLUG, HOLE(FOR FRAME) 51100B - PLUG, HOLE(FOR FRAME) 51100B - PLUG, HOLE(FOR FRAME) 51100B - PLUG, HOLE(FOR FRAME) 51100B - PLUG, HOLE(FOR FRAME) 51100B - PLUG, HOLE(FOR FRAME) 51100B - PLUG, HOLE(FOR FRAME) 51147 - REINFORCEMENT, SIDE RAIL REAR SPRING REAR HANGER 51147 - REINFORCEMENT, SIDE RAIL REAR SPRING REAR HANGER 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8  ** Std Part 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51731 - BRACKET, CAB REAR MOUNTING, RH 51731 - BRACKET, CAB REAR MOUNTING, RH 51731 - BRACKET, CAB REAR MOUNTING, RH 51731 - BRACKET, CAB REAR MOUNTING, RH 51745 - BRACKET, BODY MOUNTING, NO.5 51746 - BRACKET, BODY MOUNTING, NO.6 52146 - GUSSET, WINCH SUPPORT 52146 - GUSSET, WINCH SUPPORT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
