TOYOTA LAND CRUISER 40 45 55 HJ45LP-B / TOOL-ENGINE-FUEL / STARTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

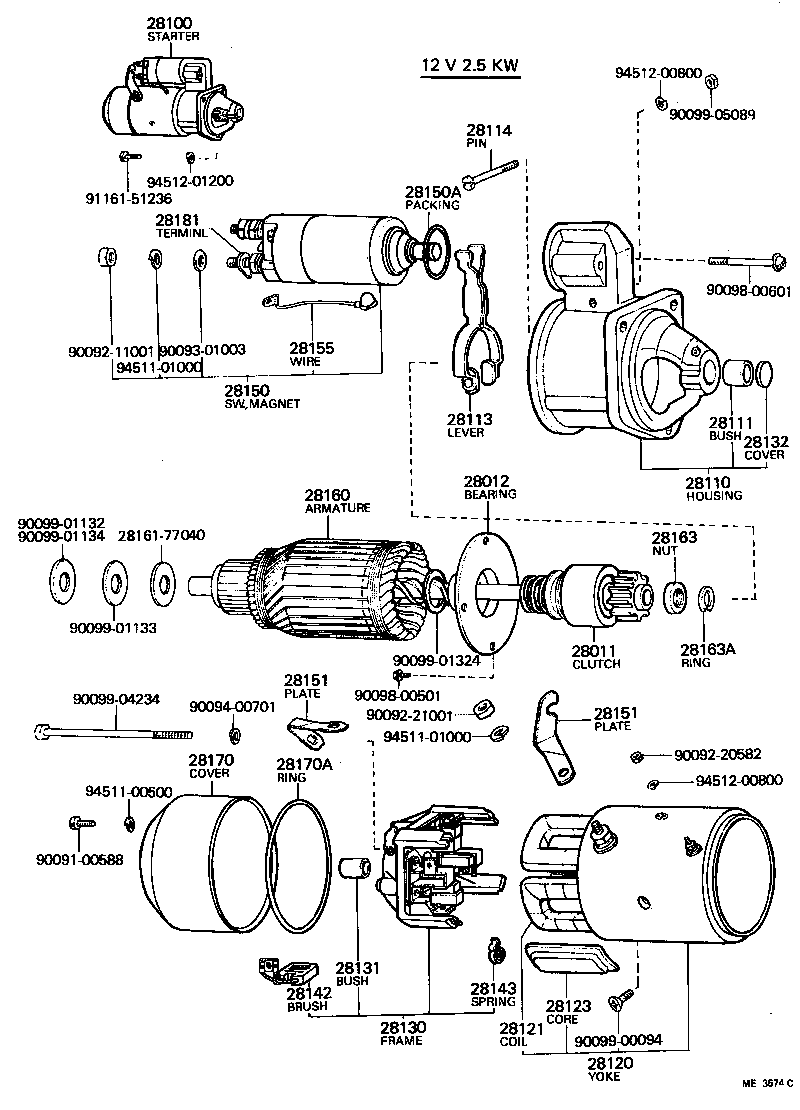

STARTER

(7204-7709)H

 LAND CRUISER 40 45 55 |  STARTER 28011 - CLUTCH SUB-ASSY, STARTER 28012 - BEARING SUB-ASSY, CENTER 28100 - STARTER ASSY 28110 - HOUSING ASSY, STARTER DRIVE 28111 - BUSH(FOR STARTER HOUSING) 28113 - LEVER, STARTER PINION DRIVE 28114 - PIN, STARTER DRIVE LEVER SET 28120 - YOKE ASSY, STARTER 28121 - COIL, STARTER FIELD 28123 - CORE, STARTER POLE 28130 - FRAME ASSY, STARTER COMMUTATOR END 28131 - BUSH, COMMUTATOR END FRAME 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) 28142 - BRUSH, STARTER 28143 - SPRING, STARTER BRUSH 28150 - SWITCH ASSY, MAGNET STARTER 28150A - PACKING(FOR STARTER MAGNET SWITCH) 28151 - PLATE, LEAD, SWITCH CONNECTING 28151 - PLATE, LEAD, SWITCH CONNECTING 28155 - WIRE, LEAD, SWITCH CONNECTING 28160 - ARMATURE ASSY, STARTER  ** Std Part 28163 - NUT OR COLLAR, PINION STOP, STARTER 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) 28170 - COVER ASSY, STARTER 28170A - RING, O(FOR STARTER COVER) 28181 - TERMINAL, STARTER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
