TOYOTA LAND CRUISER 40 45 55 HJ45LP-B / TOOL-ENGINE-FUEL / PNEUMATIC GOVERNOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

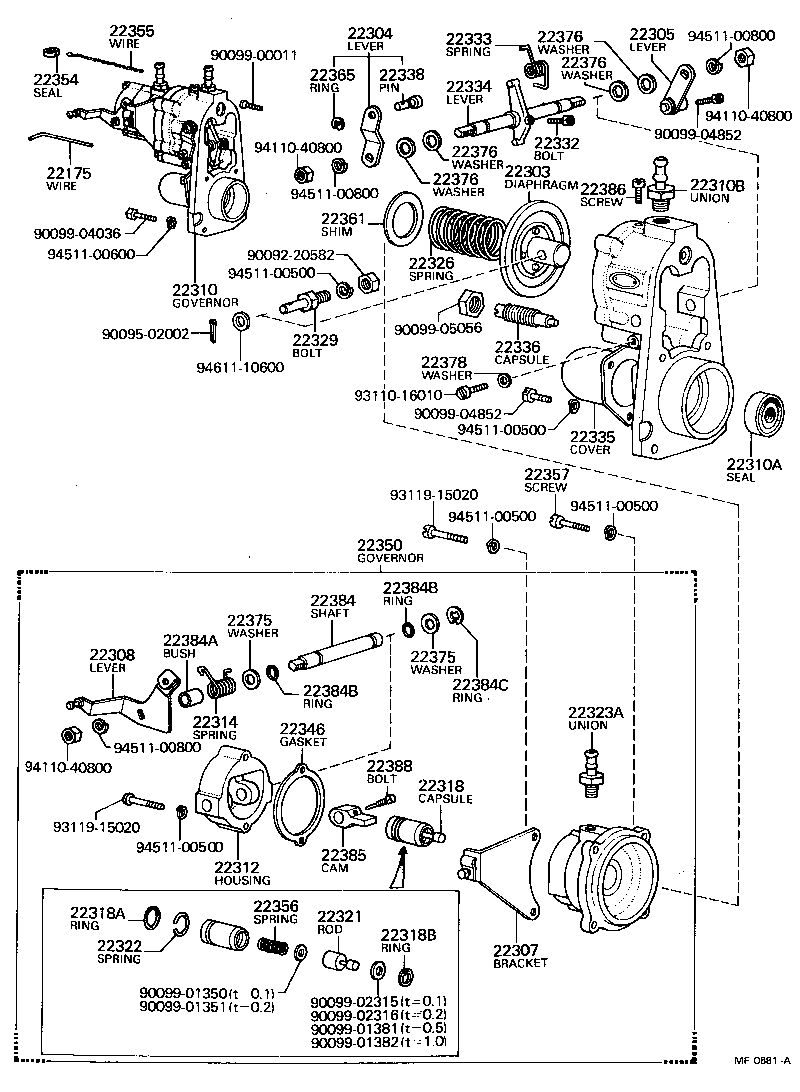

PNEUMATIC GOVERNOR

(7204-7709)H

 LAND CRUISER 40 45 55 |  PNEUMATIC GOVERNOR 22175 - WIRE, OVER INJECTION 22303 - DIAPHRAGM SUB-ASSY, GOVERNOR 22304 - LEVER SUB-ASSY, INJECTION PUMP, NO.3 22305 - LEVER SUB-ASSY, INJECTION PUMP, NO.1 22307 - BRACKET SUB-ASSY, STOP WIRE 22308 - LEVER SUB-ASSY, INJECTION PUMP, NO.2 22310 - GOVERNOR ASSY, INJECTION PUMP 22310A - SEAL, OIL(FOR INJECTION PUMP GOVERNOR) 22310B - UNION, VENTURI PIPE 22312 - HOUSING, LEVER 22314 - SPRING, BACK(FOR GOVERNOR SHAFT) 22318 - CAPSULE, IDLING 22318A - RING, SHAFT SNAP 22318B - RING, SNAP 22321 - ROD, PUSH 22322 - SPRING, RETURN(FOR IDLING CAPSULE) 22323A - UNION, VENTURI PIPE 22326 - SPRING, GOVERNOR MAIN 22329 - BOLT, DIAPHRAGM CONNECTING 22332 - BOLT, GOVERNOR STOP 22333 - SPRING, DIAPHRAGM STOP LEVER RETURN 22334 - LEVER, W/SHAFT GOVERNOR STOP 22335 - COVER, CAMSHAFT 22336 - CAPSULE, FULL STOP 22338 - PIN, LEVER 22346 - GASKET, GOVERNOR CAP 22350 - GOVERNOR ASSY, PNEUMATIC SMALL 22354 - SEAL, LEAD 22355 - WIRE, GOVERNOR HOUSING SEAL 22356 - SPRING, GOVERNOR IDLING 22357 - SCREW, DIAPHRAGM HOUSING SET 22361 - SHIM, MAIN SPRING 22365 - RING, E(FOR INJECTION PUMP LEVER) 22375 - WASHER, STOP LEVER SHAFT 22375 - WASHER, STOP LEVER SHAFT 22376 - WASHER, STOP LEVER SHAFT 22376 - WASHER, STOP LEVER SHAFT 22376 - WASHER, STOP LEVER SHAFT 22376 - WASHER, STOP LEVER SHAFT 22378 - WASHER, DRAIN SCREW 22384 - SHAFT, GOVERNOR 22384A - BUSH(FOR GOVERNOR SHAFT) 22384B - RING, O(FOR GOVERNOR SHAFT) 22384B - RING, O(FOR GOVERNOR SHAFT) 22384C - RING, E(FOR GOVERNOR SHAFT) 22385 - CAM(FOR INJECTION PUMP GOVERNOR) 22386 - SCREW(FOR INJECTION PUMP GOVERNOR) 22388 - SCREW  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
