TOYOTA TOYOACE RY10L-JR / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

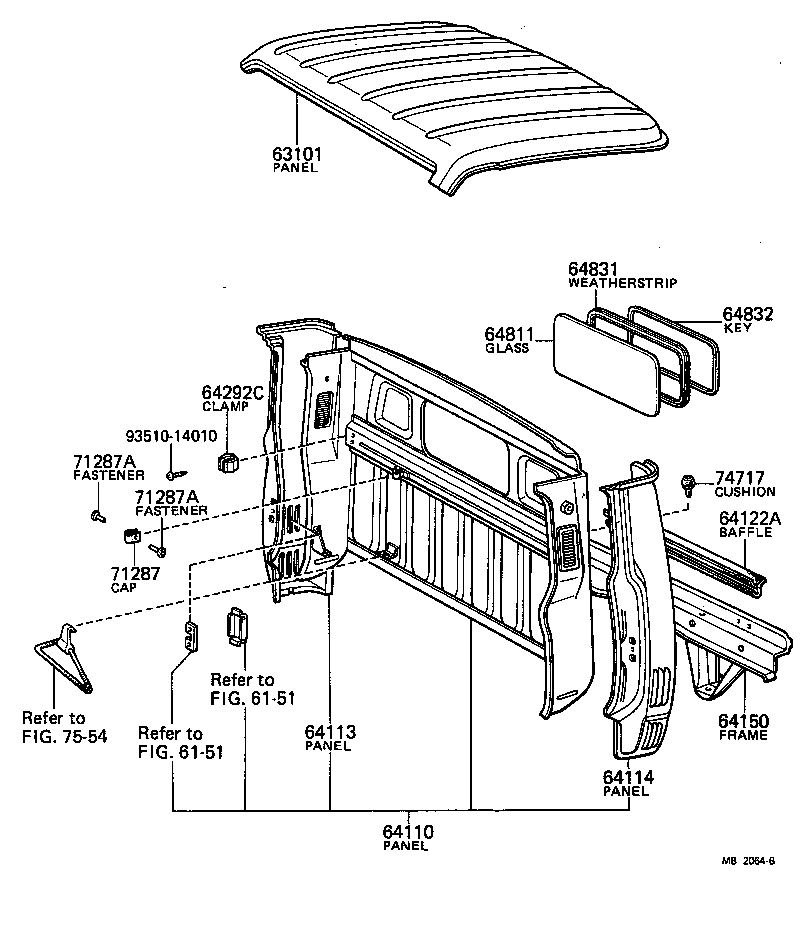

ROOF PANEL BACK PANEL

(7109-7902)

 TOYOACE |  ROOF PANEL BACK PANEL ** Refer Fig ** Refer Fig 63101 - PANEL SUB-ASSY, ROOF 64110 - PANEL ASSY, FRONT BODY BACK 64113 - PANEL, BACK CORNER, OUTER RH 64114 - PANEL, BACK CORNER, OUTER LH 64122A - BAFFLE, DUST REAR BODY 64150 - FRAME ASSY, BACK 64292C - CLAMP, JACK HANDLE 64811 - GLASS, BACK WINDOW 64831 - WEATHERSTRIP, BACK WINDOW GLASS 64832 - KEY, BACK WINDOW WEATHERSTRIP 71287 - CAP, PASSENGER SEAT BACK FRAME STOP 71287A - FASTENER, LEATHER(FOR PASSENER SEAT BACK FRAME STOP CAP) 71287A - FASTENER, LEATHER(FOR PASSENER SEAT BACK FRAME STOP CAP) 74717 - CUSHION (FOR JACK HANDLE) ** Refer Fig  ** Std Part
