TOYOTA TOYOACE RY10L-JR / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

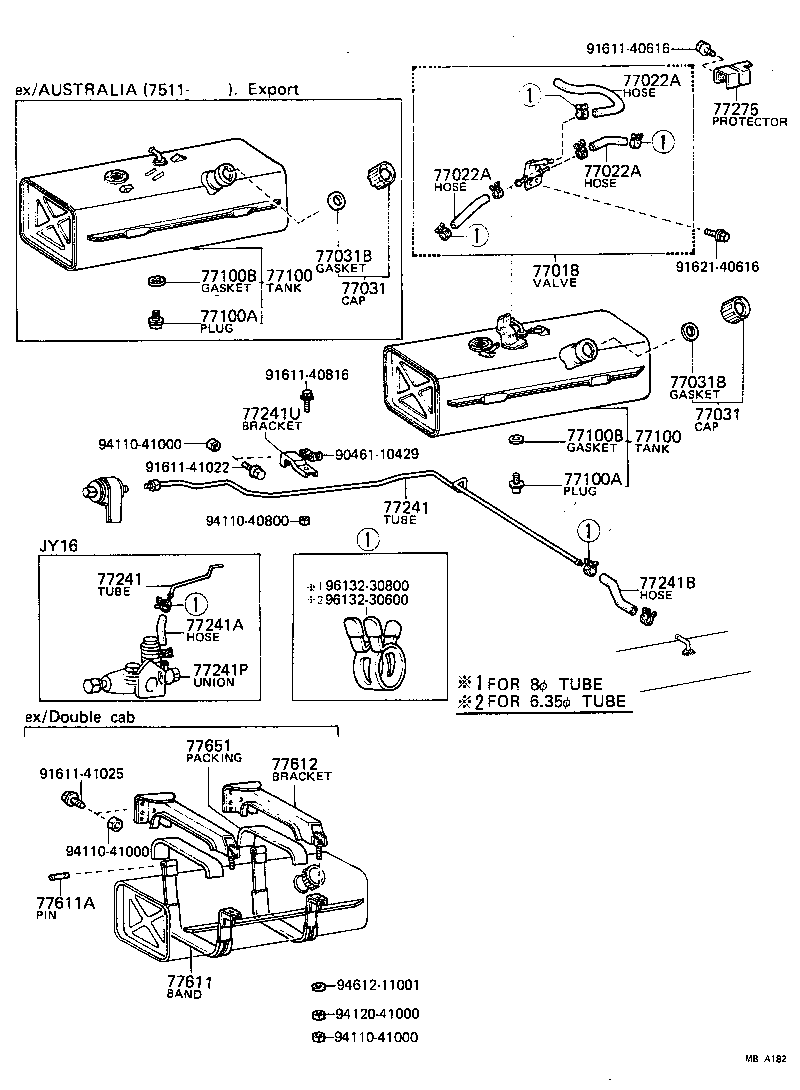

FUEL TANK TUBE

(7304-7902)

 TOYOACE |  FUEL TANK TUBE 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77031 - CAP ASSY, FUEL TANK 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77031B - GASKET (FOR FUEL TANK CAP) 77100 - TANK ASSY, FUEL 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77241 - TUBE, FUEL MAIN, NO.1 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77241P - UNION, FUEL FRONT TUBE HOSE 77241U - BRACKET, FUEL CLAMP 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR 77611 - BAND, FUEL TANK 77611A - PIN (FOR FUEL TANK BAND) 77612 - BRACKET SUB-ASSY, FUEL TANK 77651 - PACKING, FUEL TANK BRACKET  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
