TOYOTA TOYOACE RY10L-JR / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE MASTER CYLINDER

(7109-7902)RY10,12

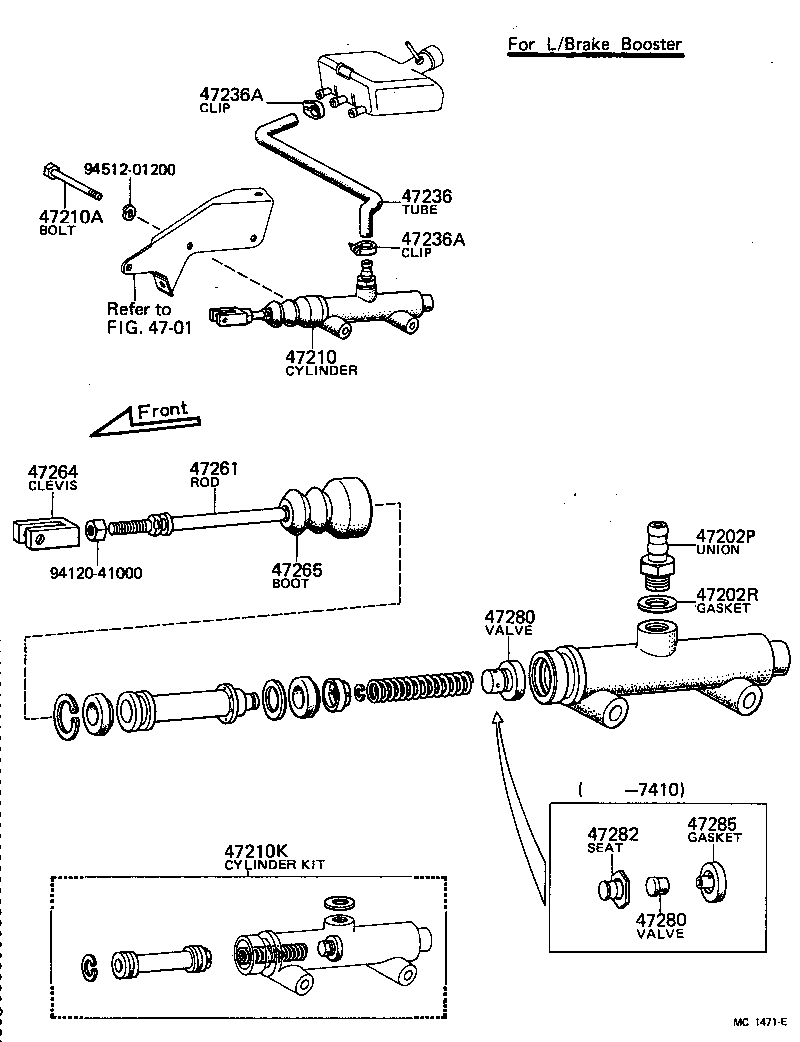

 TOYOACE |  BRAKE MASTER CYLINDER ** Refer Fig 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER 47210A - BOLT OR STUD BOLT(FOR BRAKE MASTER CYLINDER SETTING) 47210K - CYLINDER KIT, BRAKE MASTER 47236 - TUBE, RESERVOIR BRAKE 47236A - CLIP(FOR RESERVOIR TUBE) 47236A - CLIP(FOR RESERVOIR TUBE) 47261 - ROD, MASTER CYLINDER PUSH 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47265 - BOOT, MASTER CYLINDER 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK 47282 - SEAT, OUTLET CHECK VALVE SEAT 47285 - GASKET, OUTLET CHECK VALVE SEAT  ** Std Part  ** Std Part
