TOYOTA CROWN MS85R-NQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

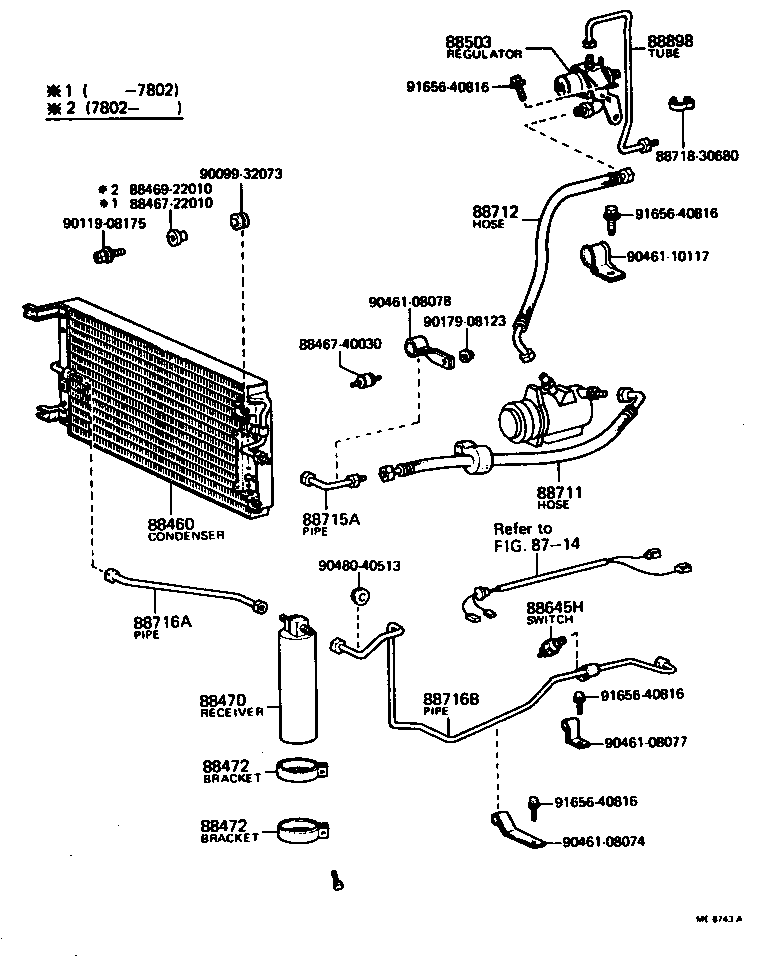

HEATING AIR CONDITIONING COOLER PIPING

(7707-7908)RHD..ROY

CROWN | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig 88460 - CONDENSER ASSY, COOLER ** Std Part ** Std Part ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER 88472 - BRACKET, RECEIVER TANK, NO.1 88472 - BRACKET, RECEIVER TANK, NO.1 88503 - REGULATOR ASSY, PRESSURE 88645H - SWITCH, PRESSURE NO.1 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B ** Std Part 88898 - TUBE SUB-ASSY, EQUALIZER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
