TOYOTA DYNA HU30L-QRDT / POWERTRAIN-CHASSIS / CLUTCH RELEASE FORK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

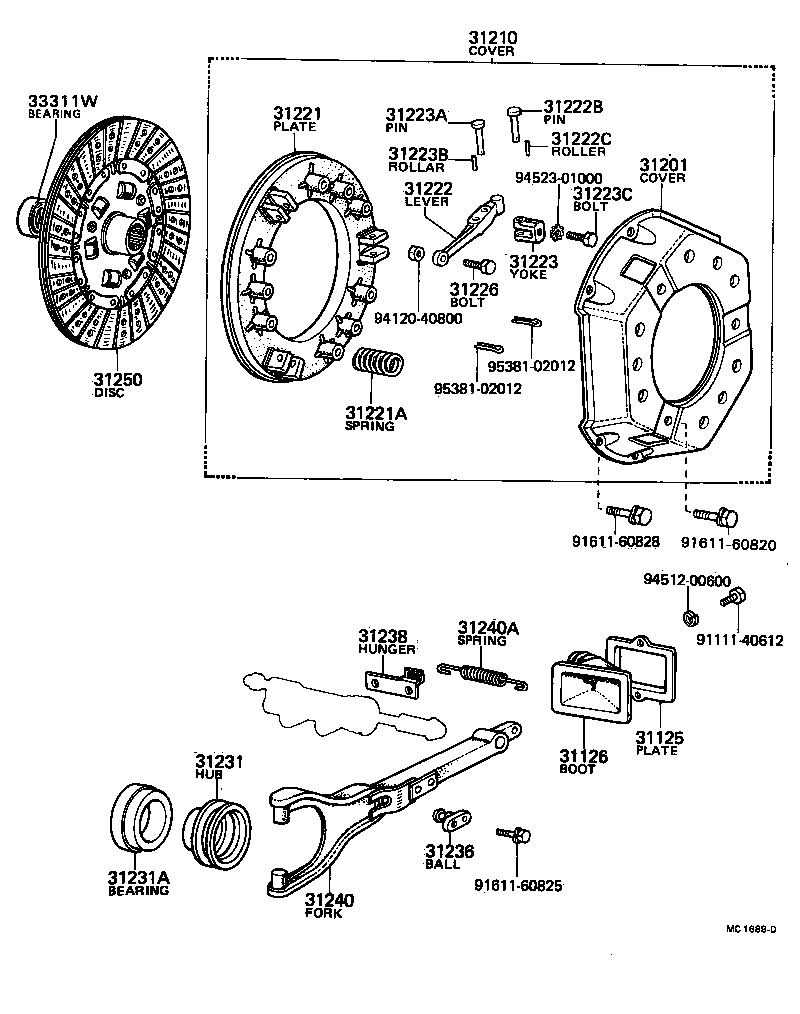

CLUTCH RELEASE FORK

(7708-8104)HU30

 DYNA |  CLUTCH RELEASE FORK 31125 - PLATE, RELEASE FORK BOOT 31126 - BOOT, CLUTCH RELEASE FORK 31201 - COVER SUB-ASSY, CLUTCH 31210 - COVER ASSY, CLUTCH 31221 - PLATE, CLUTCH PRESSURE 31221A - SPRING, COMPRESSION(FOR CLUTCH) 31222 - LEVER, CLUTCH PRESSURE 31222B - PIN, W/HOLE(FOR CLUTCH PRESSURE LEVER) 31222C - ROLLER OR BEARING, CLUTCH PRESSURE PLATE PIN 31223 - YOKE, CLUTCH RELEASE LEVER 31223A - PIN(FOR CLUTCH PRESSURE LEVER) 31223B - ROLLER, CLUTCH PRESSURE LEVER 31223C - BOLT, HEXAGON(FOR CLUTCH RELEASE LEVER YOKE) 31226 - BOLT, CLUTCH PRESSURE PLATE 31231 - HUB, CLUTCH RELEASE BEARING 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) 31236 - BALL, RELEASE FORK 31238 - HANGER, RELEASE FORK RETRACTING SPRING 31240 - FORK ASSY, CLUTCH RELEASE 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) 31250 - DISC ASSY, CLUTCH 33311W - BEARING (FOR INPUT SHAFT)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
